Assembly
REASSEMBLY 1.
Apply genuine
brake fluid to the rubber parts of the cylinder kit and grommets.
2.

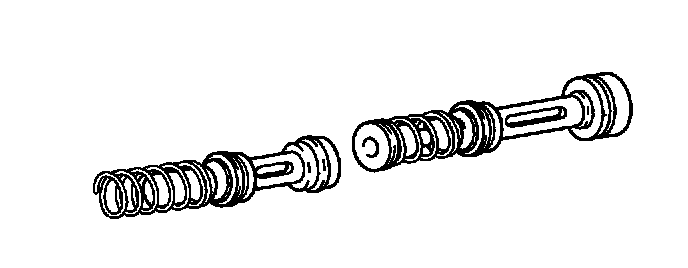

Carefully insert the springs and pistons in the proper direction.
3.

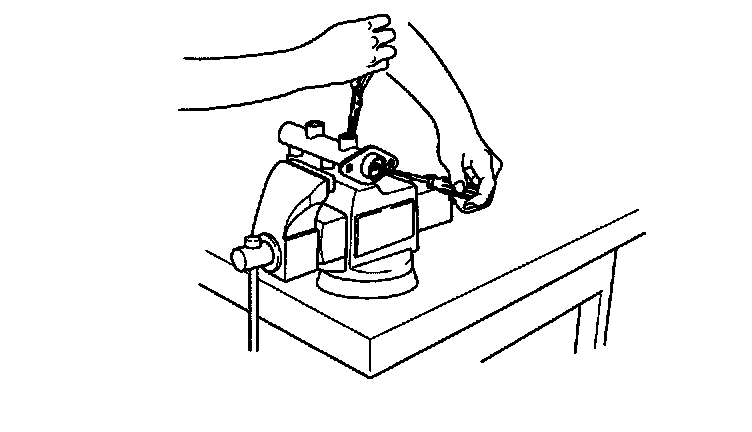

Press the piston with a screwdriver and install the cylinder pin.
4.

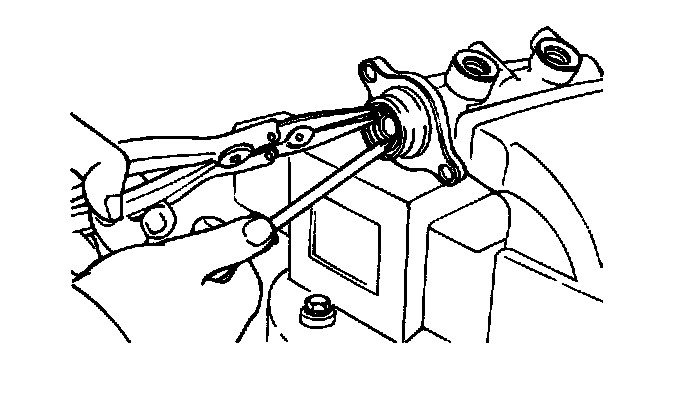

Press the piston with a screwdriver and install the snap ring.
5.
Install the proportioning valves.
6.
Mount two grommets.
7.
Install the reservoir on the cylinder.
