Removal

REMOVAL

NOTE: The parking brake cables must not be bent or distorted. This will lead to stiff operation and premature failure.

REAR DRUM BRAKE
1. Remove the console.

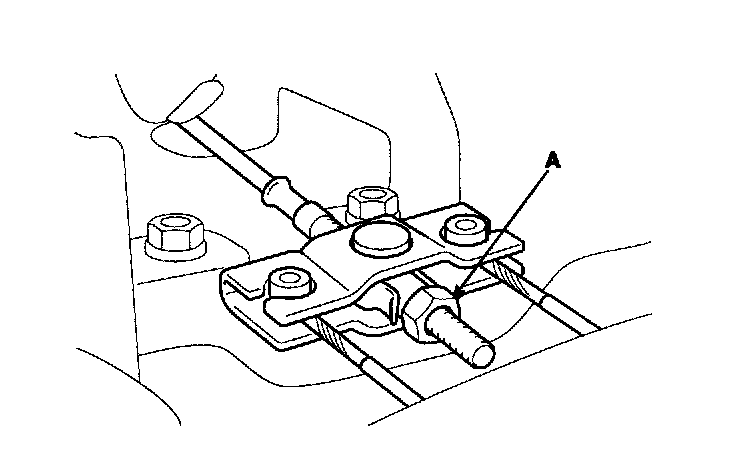

2. Loosen the adjusting nut (A) and the parking brake cables.

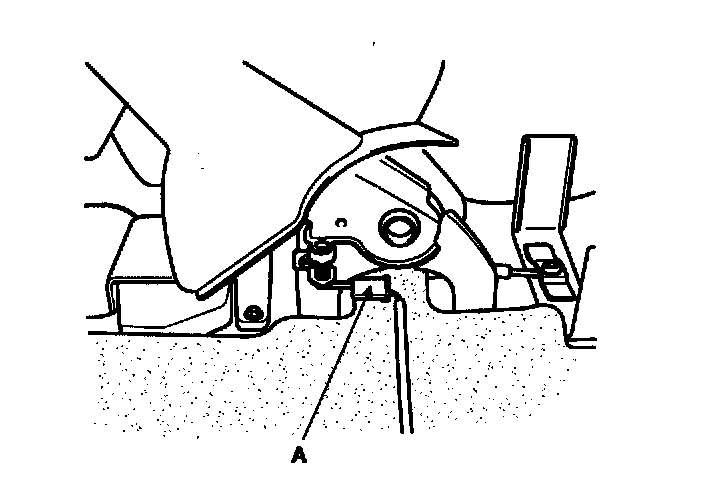

3. Disconnect the connector(A) of parking brake switch.

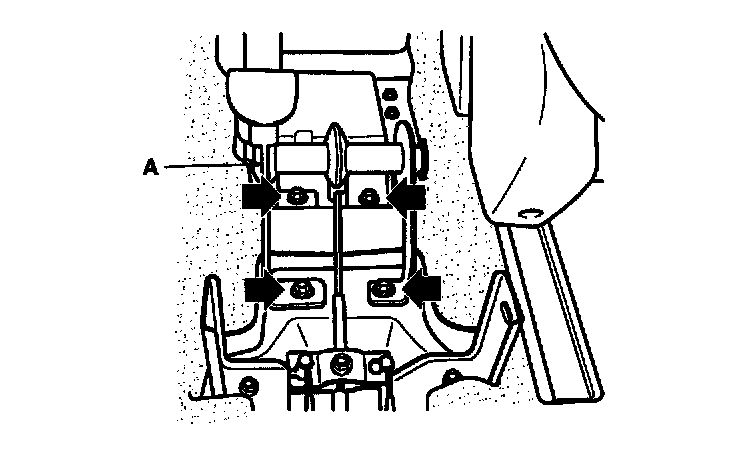

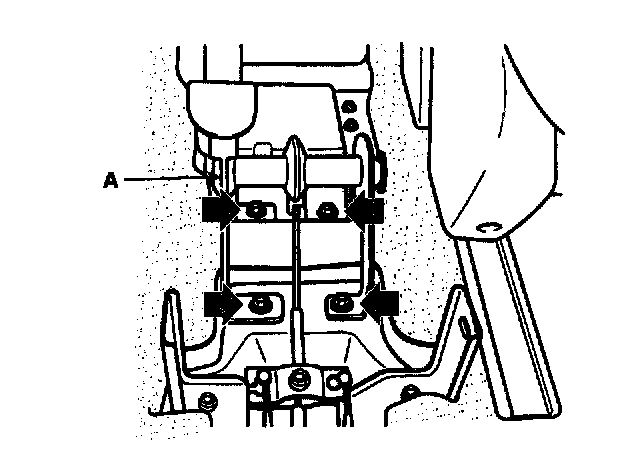

4. Remove the parking brake lever assembly(A).
5. Remove the wheel and tire.
6. Remove the brake drum and the brake shoe (Refer to the rear drum brake).

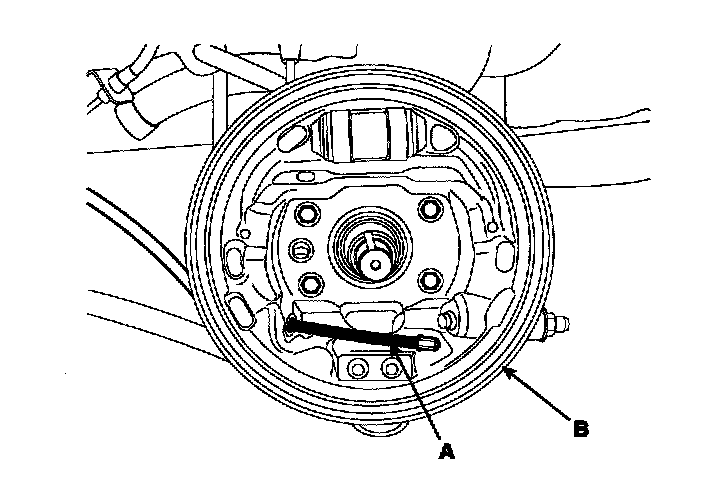

7. Remove the parking brake cable from the brake shoe.

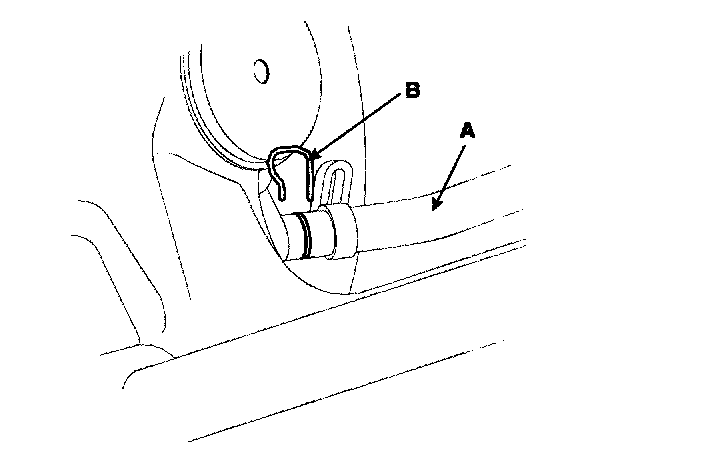

8. Remove the parking brake cable retaining (B), from the parking brake cable (A).





9. Remove the parking brake cable (A) from the backing plate (B).

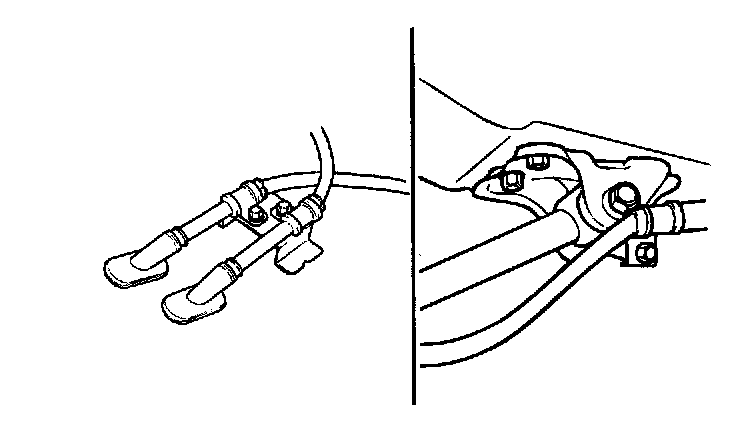

10. Remove the clamps of parking brake cables and then remove the parking brake cables.

Components:

REAR DISC BRAKE

1. Remove the console.





2. Loosen the adjusting nut (A) and the parking brake cables.

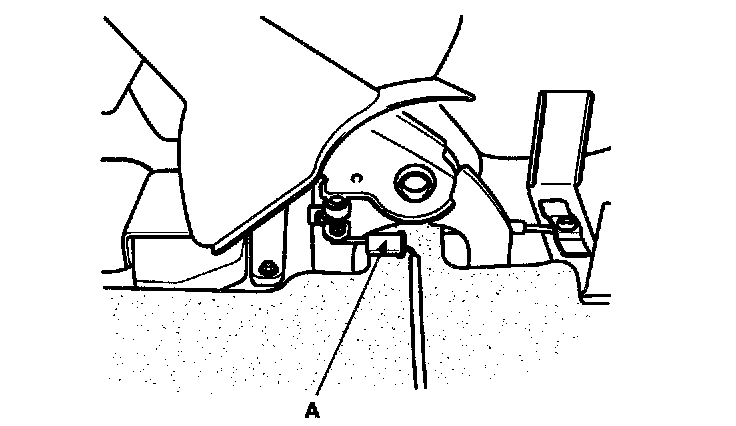

3. Disconnect the connector(A) of parking brake switch.





4. Remove the parking brake lever assembly(A).

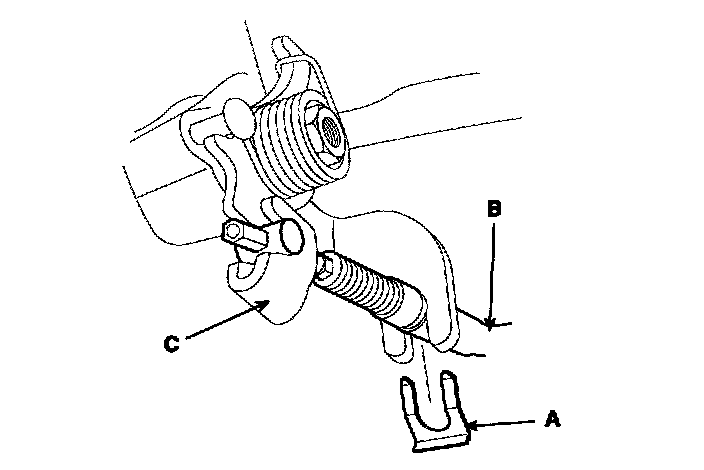

5. Remove the parking cable clip (A) from the parking brake cable(B).





6. Disconnect the parking brake cable (B) from the lever (c).

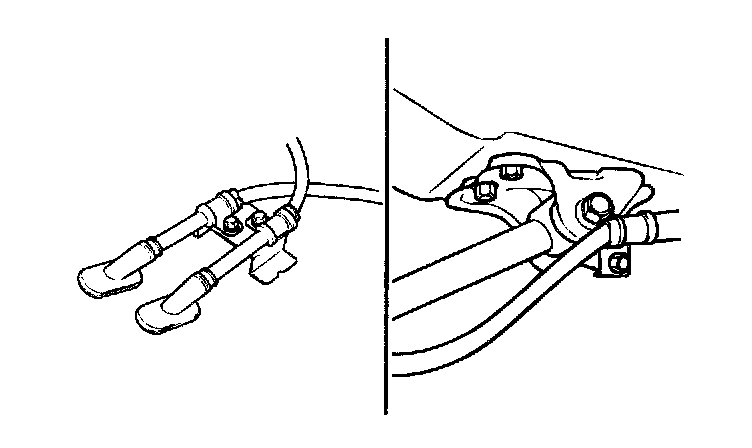

7. Remove the clamps of parking brake cables and then remove the parking brake cables.
