Replacement
REPLACEMENT TRAILING ARM BUSHING 1.
Install the special tool (09551-25000) on the
trailing arm.
2.
Remove the
trailing arm bushing.
3.

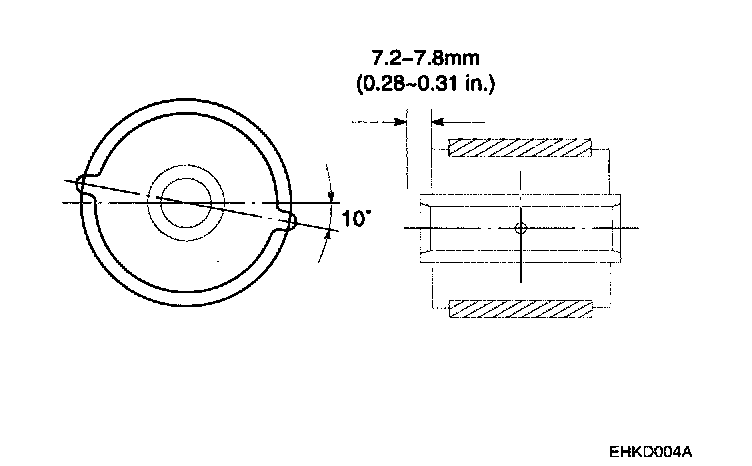

Using the special tool (09551-25000), press - fit the rear
trailing arm bushing.

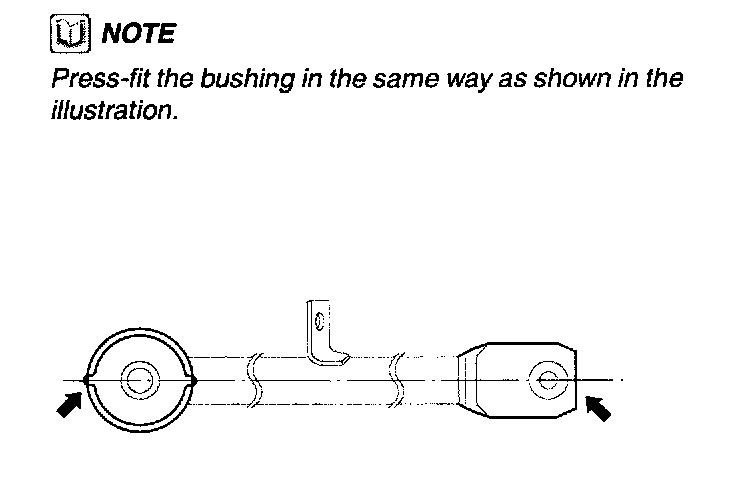

NOTE: Press - fit the bushing in the same way as shown in the illustration.
