Compressor HVAC: Testing and Inspection
INSPECTION 1.

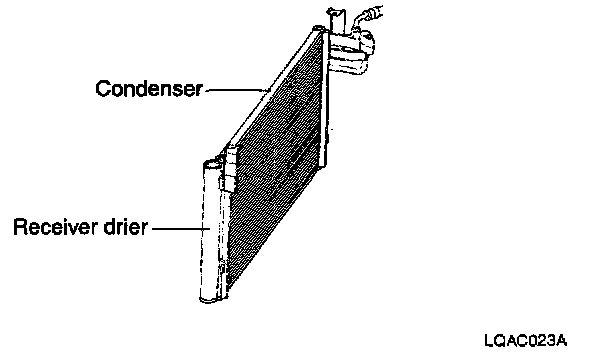

Remove and install the condenser by referring to the radiator of engine mechanical system.
2.
Check the condenser fins for clogging and damage. If clogged, clean them with water, and blow them with compressed air. If bent, gently bend them using a screwdriver or pliers.
3.
Check the condenser connections for leakage, and repair or replace it, if required.
