Disassembly

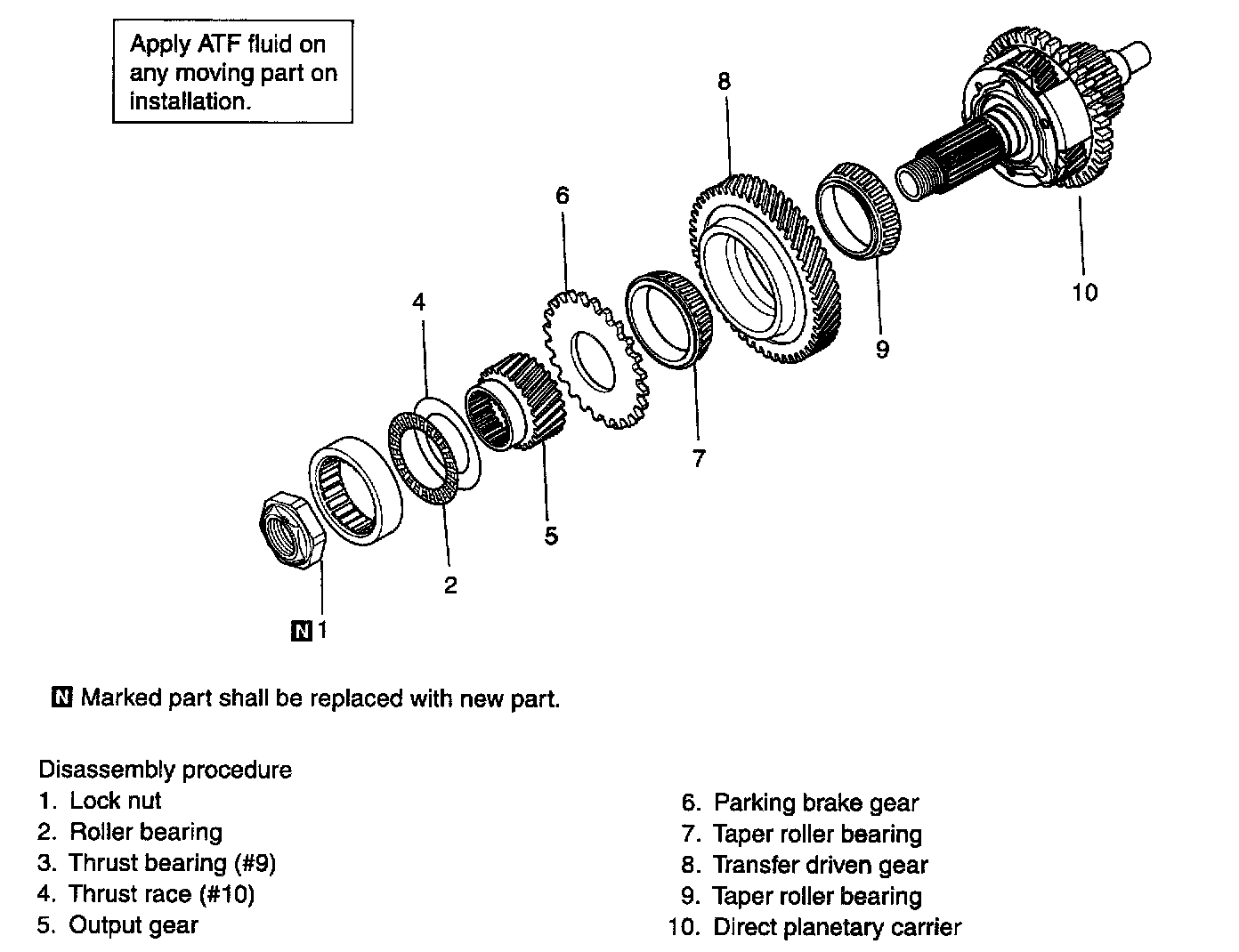

PLANETARY GEAR SETCOMPONENTSDISASSEMBLY 1.
Cock the lock nut only enough to turn.
2.
Remove the lock nut.
3.
Remove the output gear and the parking brake gear using the special tool (09433-21000).
4.
Remove the taper roller bearing and the transfer driven gear.
5.
Remove the inner taper roller bearing.
