Ignition Coil: Service and Repair
REPLACEMENTIGNITION COIL 1.
Remove the engine cover.
2.
Remove the
ignition coil with bolt.
Tightening torque :

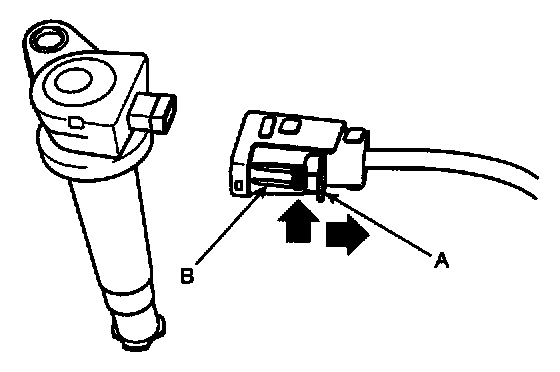

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft) NOTE: When removing the
ignition coil connector, pull the lock pin (A) and push the clip (B).
3.
Installation is the reverse of removal.
