Disassembly
Generator Component:
GENERATORDISASSEMBLY 1.

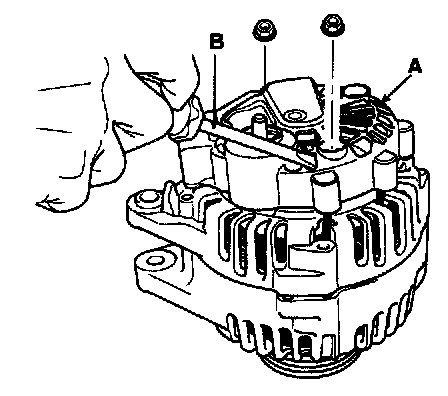

Remove the generator cover (A) using a screwdriver (B).
2.

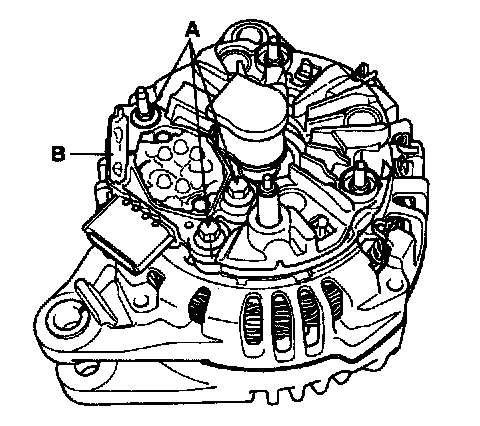

Loosen the mounting bolts (A) and disconnect the

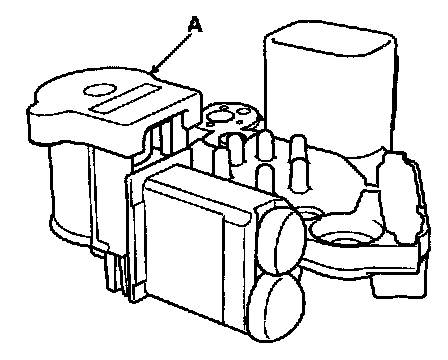

brush holder assembly (B).
3.
Remove the slip ring guide (A).
4.

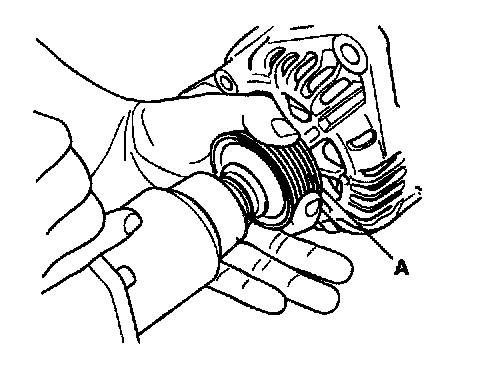

Remove the nut, pulley (A) and spacer.
5.

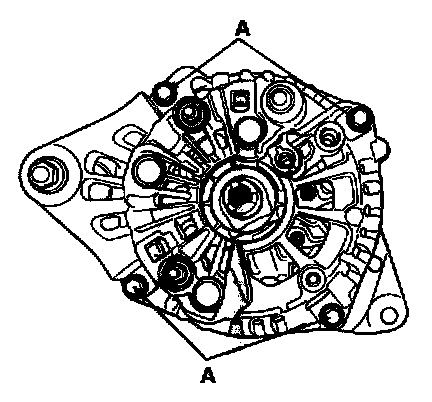

Loosen the 4 through bolts (A).
6.
Disconnect the

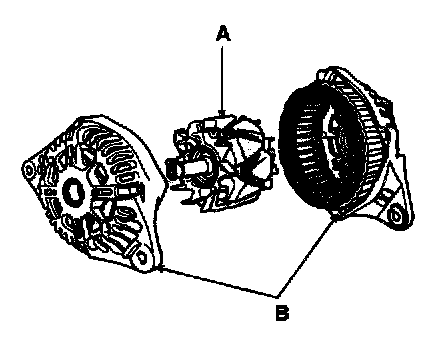

rotor (A) and cover (B).
7.
Reassembly is the reverse of disassembly
