Front Door Window Regulator: Service and Repair
REPLACEMENTDOOR REGULATOR REPLACEMENT 1.
Remove the door trim.
2.
Remove the door trim seal.
3.
Remove the window glass.
4.

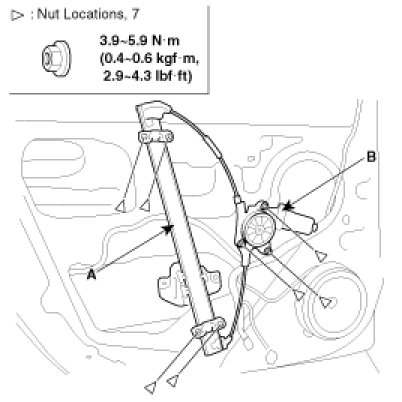

After loosen the door regulator mounting nuts and window motor(B) mounting nuts, remove the door regulator(A).
