Air Register: Service and Repair

AIR VENT REPLACEMENT

DRIVER'S
1. Remove the crash pad side cover.
2. Remove the center facia panel.
3. Remove the cluster facia panel and upper shroud.

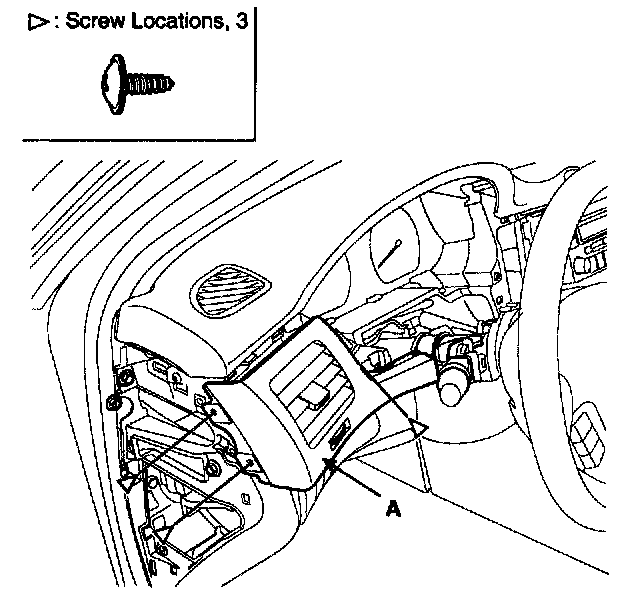

4. After loosening the mounting screw, then remove the air vent (A).
5. Installation is the reverse of removal.

PASSENGER'S
1. Remove the center facia panel.
2. Remove the crash pad side cover.

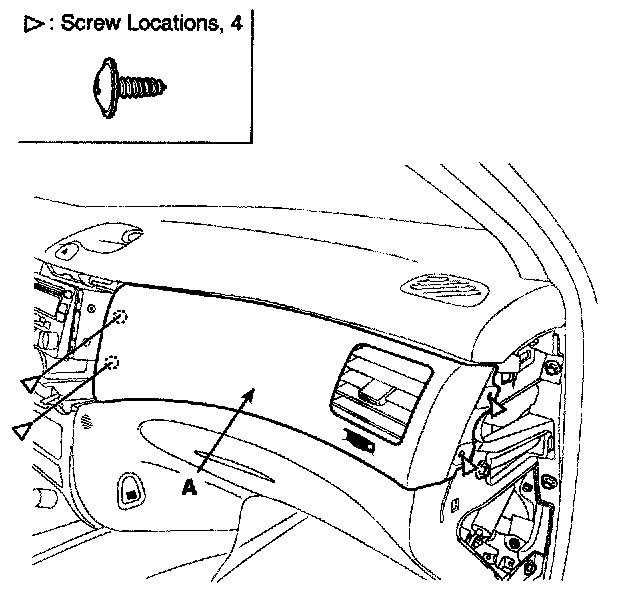

3. After loosening the mounting screw, then remove the air vent (A).
4. Installation is the reverse of removal.
