Rear Power MOSFET

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the luggage side trim.

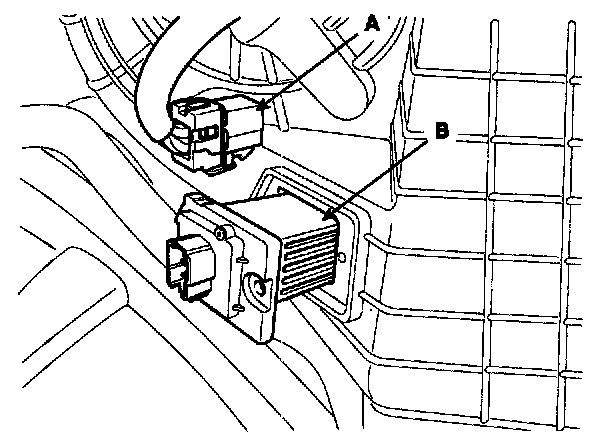

3. Disconnect the power MOSFET connector (A).
4. Remove the power MOSFET (B) after loosening the mounting screws.
