Rear Power MOSFET
REAR POWER MOSFETINSPECTION
1. Ignition "ON"

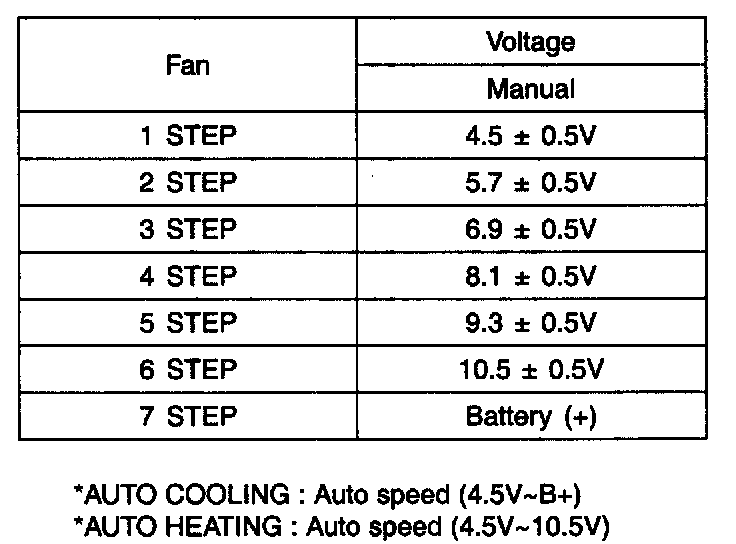

2. Manually operate the control switch and measure the voltage of blower motor between pin 1 and 2.
3. Select the control switch to raise voltage until high speed.
INSPECTION
1. Ignition "ON"
2. Manually operate the control switch and measure the voltage of blower motor between pin 1 and 2.
3. Select the control switch to raise voltage until high speed.
