FRONT WIPER MOTOR

REMOVAL

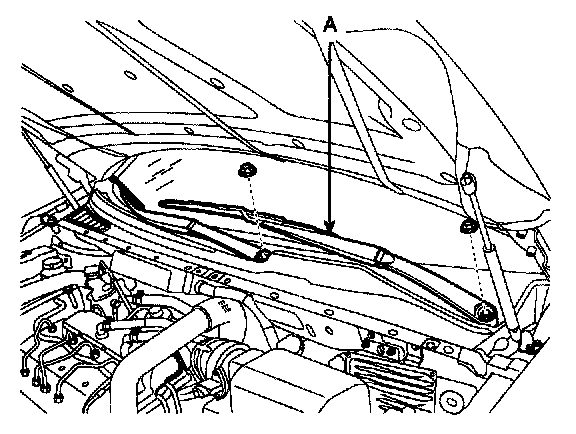

1. Remove the windshield wiper arm and blade after removing the mounting nut (A).

TORQUE: 28 - 32 Nm (2.8 - 3.2 kgf.m, 20 - 23.1 lbf.ft)

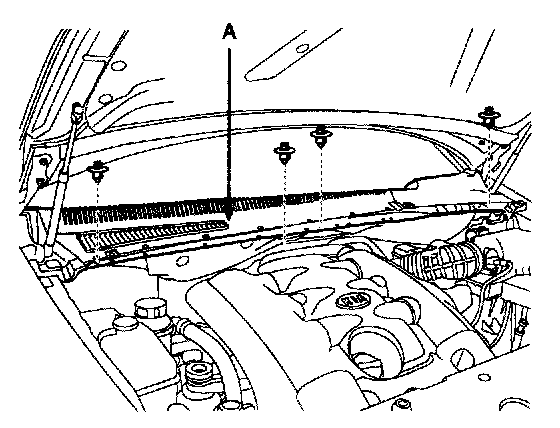

2. Remove the weather strip and the cowl top cover (A) after removing 4 fasteners.

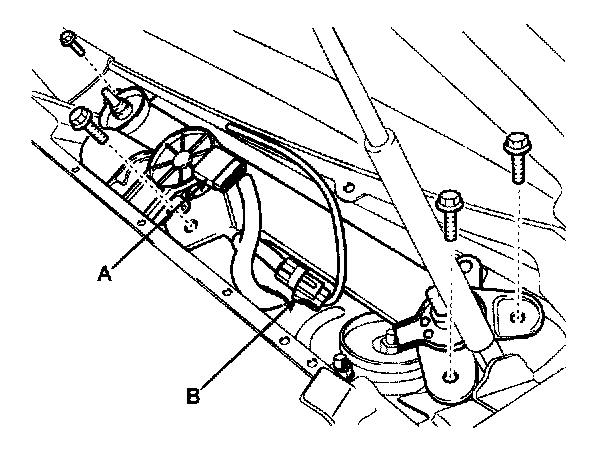

3. Remove the windshield wiper motor and linkage assembly after removing 4 bolts. Disconnect the wiper motor connector (A) and windshield deicer connector (B) from the wiper motor & linkage assembly.

Torque: 7 - 11 Nm (0.7 - 1.1 kgf.m, 5.0 - 7.9 lbf.ft)

4. Installation is the reverse of removal.

INSTALLATION




1. Install the wiper arm and blade to the specified position.




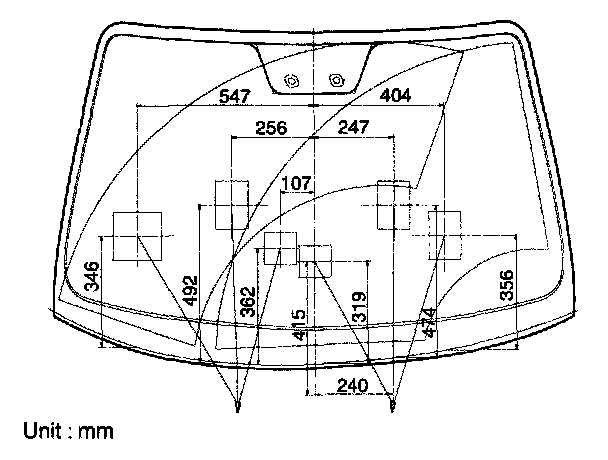

2. Set the washer nozzle on the specified spray position.
