Measuring Actual Dimensions

MEASURING ACTUAL DIMENSIONS

1. These dimensions indicate the actual linear distance between measurement points, and are used as the reference dimensions when a tracking gauge is used for measurement.
2. First adjust both probes to the same length (A=A') before measurement.






NOTE: Check the probes and gauge itself to make sure there is no free play.

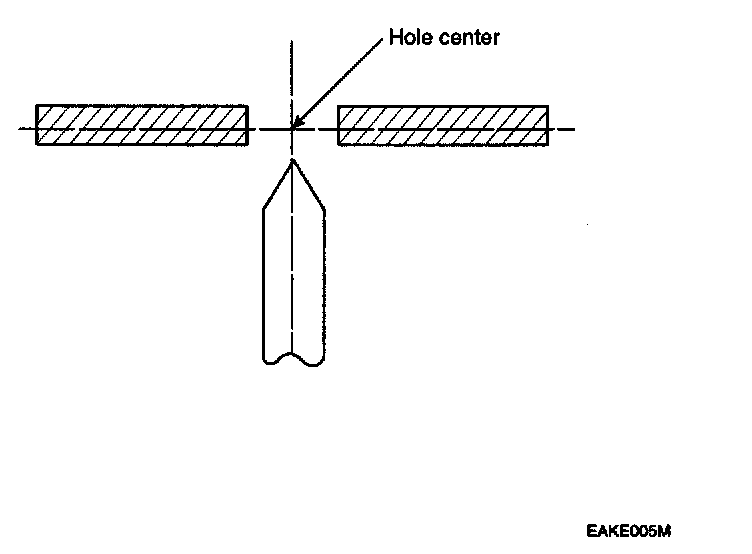

MEASUREMENT POINT




Measurements should be taken at the center to the hole.
