Intake Manifold
Install the
intake manifold assembly with a new gasket to a

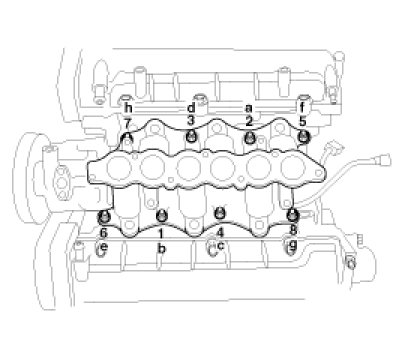

cylinder head assembly. Tighten the bolts in two steps.
Tightening torque: Step 1(a-h): 3.9-5.9Nm (0.4-0.6kgf.m, 2.9-4.3lb-ft) / Step 2(1-8): 18.6-23.5Nm (1.9-2.4kgf.m, 13.7-17.4lb-ft) CAUTION: When installing the gasket on the cylinder head, check the identification marks(LH/RH) not to be installed wrong.
