Monitor Scantool data





Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Ignition "ON" & Engine "ON".
3. Press the brake pedal.

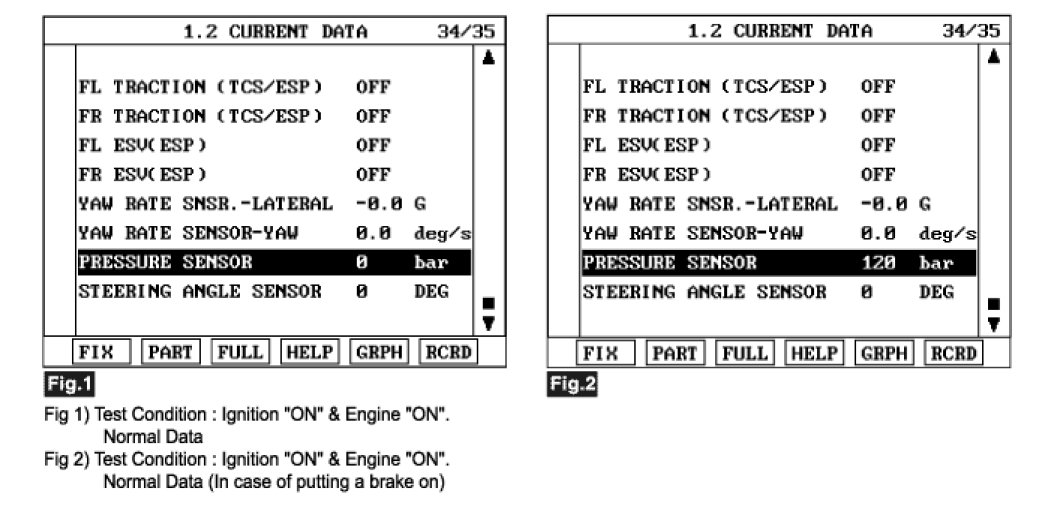

4. Monitor the "Pressure Sensor" parameter on the Scantool.
A. Specification : Approx. 60 bar ~150 bar (There is difference in displayed parameter according to braking force)




5. Is parameter displayed within specifications ?
YES
1) Fault is intermittent caused by poor connection in pressure sensor harness and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
1) Go to "W/Harness Inspection" procedure.
