P0708
DTC P0708 TRANSAXLE RANGE SWITCH - HIGH INPUTCOMPONENT LOCATION
Refer to DTC P0707. P0707
GENERAL DESCRIPTION
Refer to DTC P0707. P0707
DTC DESCRIPTION
Refer to DTC P0707. P0707

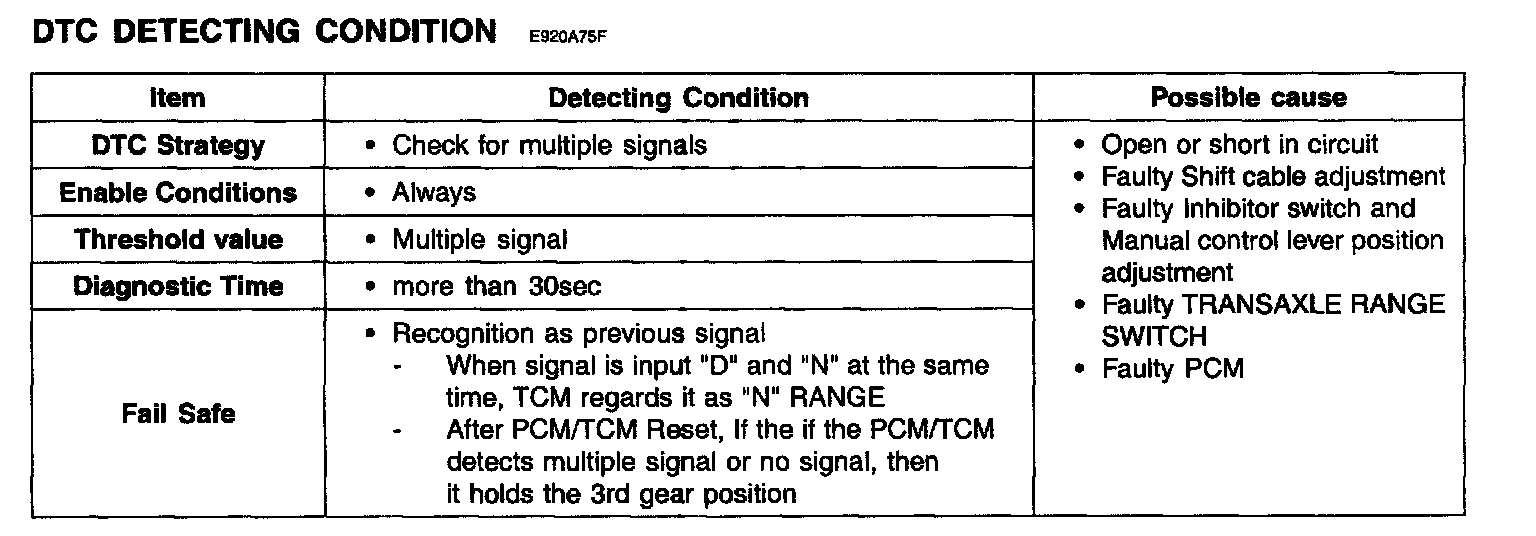

DTC Detecting Condition:
SIGNAL WAVEFORM
Refer to DTC P0707. P0707
MONITOR SCANTOOL DATA
Refer to DTC P0707. P0707
TERMINAL & CONNECTOR INSPECTION
Refer to DTC P0707. P0707
POWER SUPPLY CIRCUIT INSPECTION
1. Disconnect "TRANSAXLE RANGE SWITCH" connector.
2. Ignition "ON" & Engine "OFF".
3. Measure voltage between each terminal of the sensor harness connector and chassis ground.
C338:
4. Is voltage within specifications?
YES
^ Go to "Signal circuit inspection" procedure.
NO
^ Check for Short in harness. Repair as necessary and Go to "Verification of Vehicle Repair" procedure.
SIGNAL CIRCUIT INSPECTION
1. Ignition "OFF".
2. Disconnect "TRANSAXLE RANGE SWITCH" and "TCM(PCM)" connector.
3. Measure resistance between each terminals of the sensor harness to check for Short.
C338:
4. Is resistance within specifications?
YES
^ Go to "Component inspection" procedure.
NO
^ Check for Short in harness. Repair as necessary and Go to "Verification of Vehicle Repair" procedure.
COMPONENT INSPECTION
Refer to DTC P0707. P0707
VERIFICATION OF VEHICLE REPAIR
Refer to DTC P0707. P0707
