Remote Control: Service and Repair
AUDIO REMOTE CONTROLREMOVAL 1.
Disconnect the negative (-) battery terminal.
2.

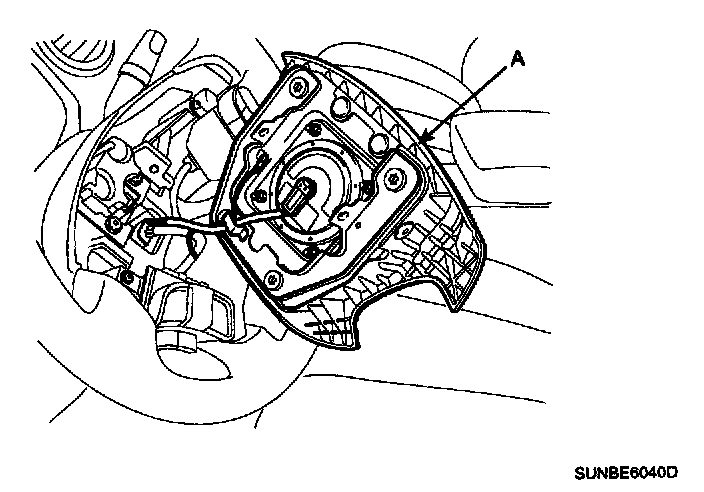

Remove the driver airbag module (A).
3.

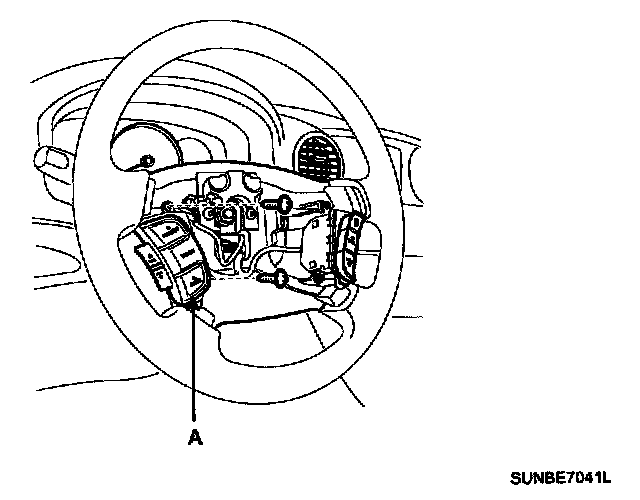

Remove the audio
remote control switch (A) after removing fixing screws (2EA).
INSTALLATION 1.
Connect the audio
remote control switch connector and install the audio remote control switch.
2.
Install the driver airbag module.
