Rear Bumper: Service and Repair

REAR BUMPER

REPLACEMENT

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape and apply protective tape around the related parts your hands.
- Put on gloves to protect your hands.
- Take care not bend or scratch the cover and other parts.

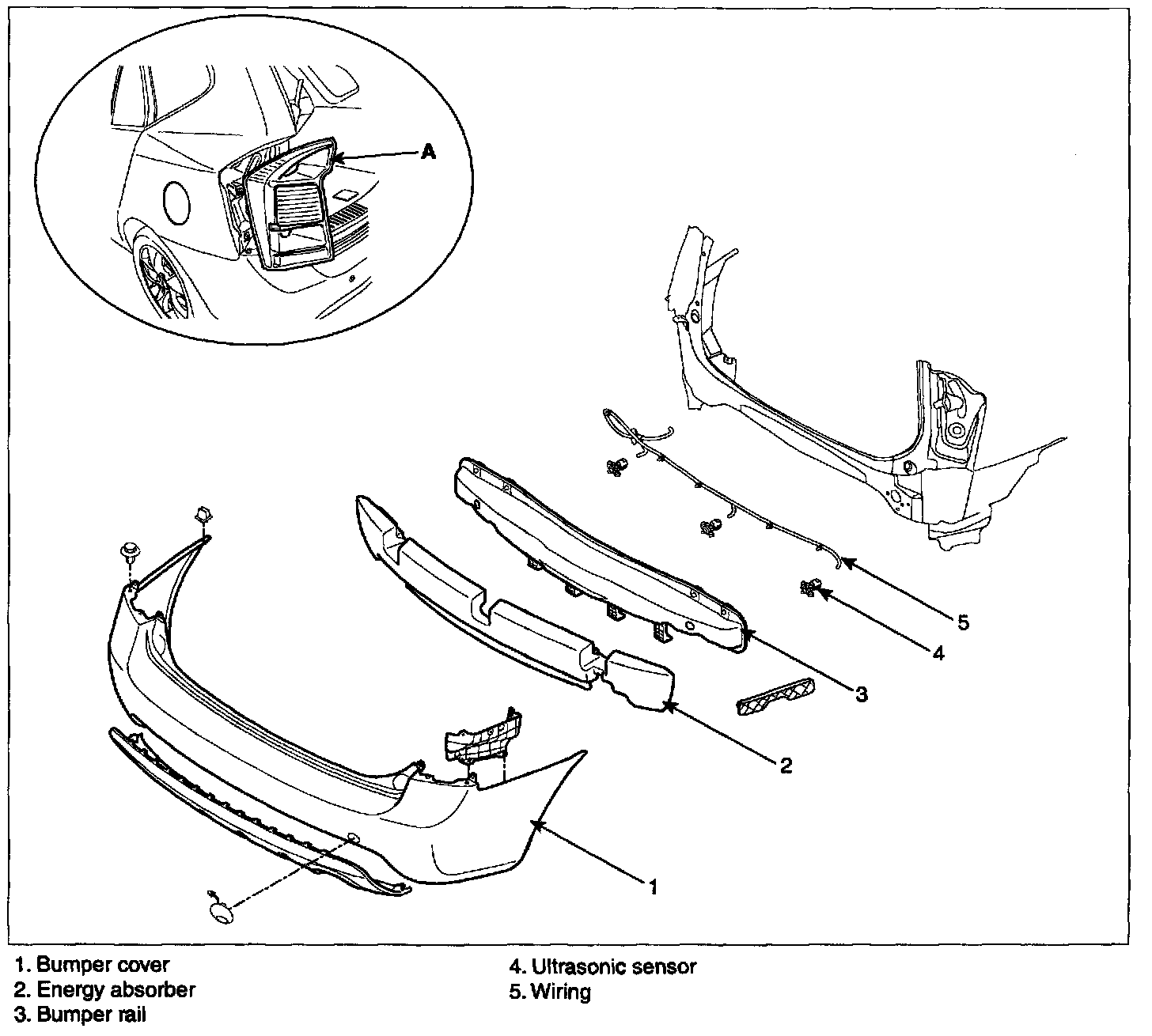

1. Remove the rear combination lamp (A).
2. Loosen the rear bumper cover screws and clips.
3. Remove the rear bumper.
4. Installation is the reverse of removal.

NOTE: Replace any damage clips.
