Trunk / Liftgate: Adjustments

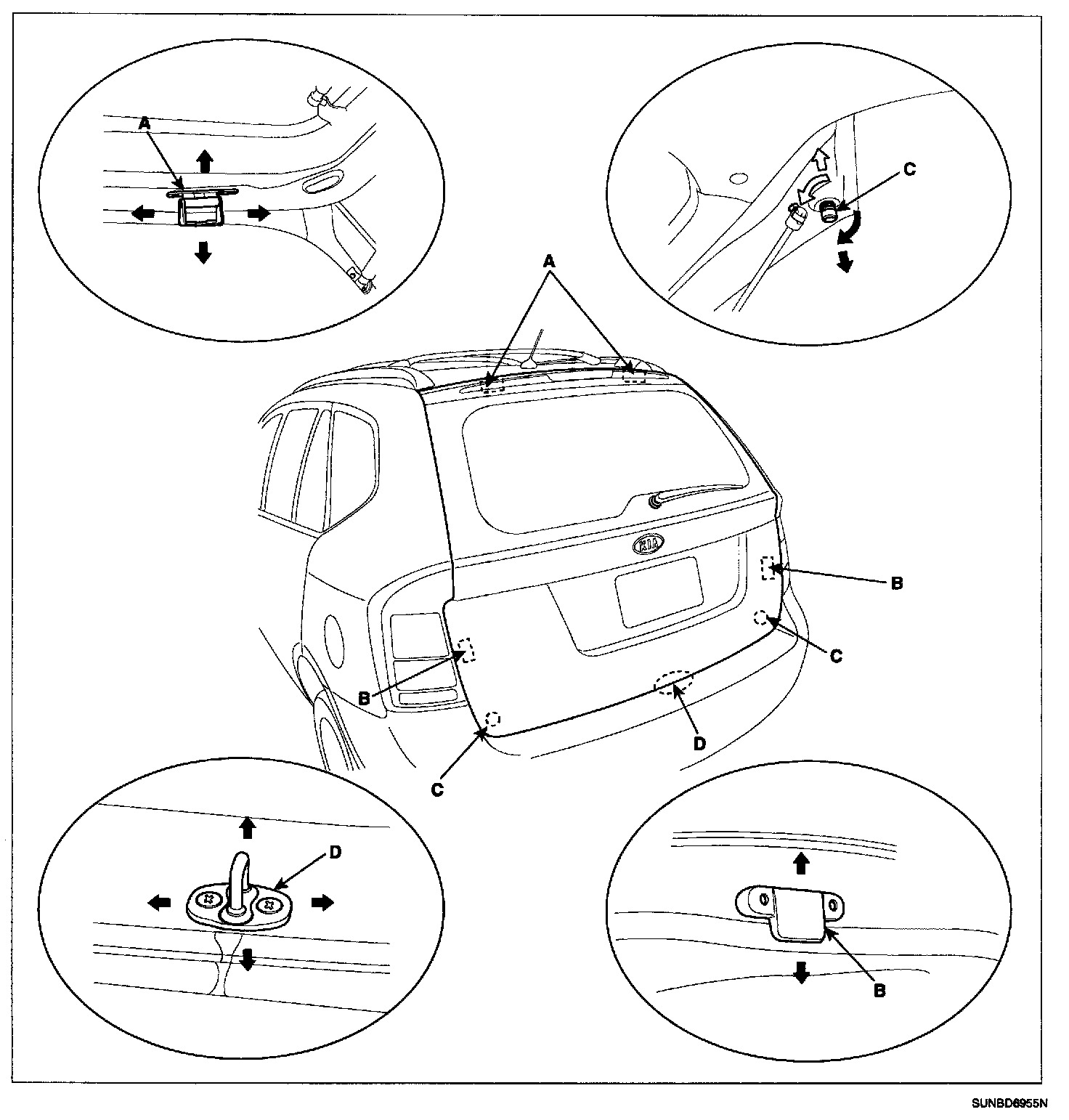

ADJUSTMENT 1.
After loosening the tailgate hinge (A) mounting bolt, adjust the
tailgate by moving it up or down, or right or left.
2.
Adjust the
tailgate fit by turning the tailgate overslam
bumper (C) and side bumper (B).
3.
Adjust the striker (D) by moving it up or down, or right or left.
