Front Fender: Service and Repair
FENDERREPLACEMENTNOTE: -
Take care not to damage the
hood and body.
-
When removing the clips, use a clip remover.
1.
Remove the following items.
-
Headlamp assembly.
-
Front
bumper.
-

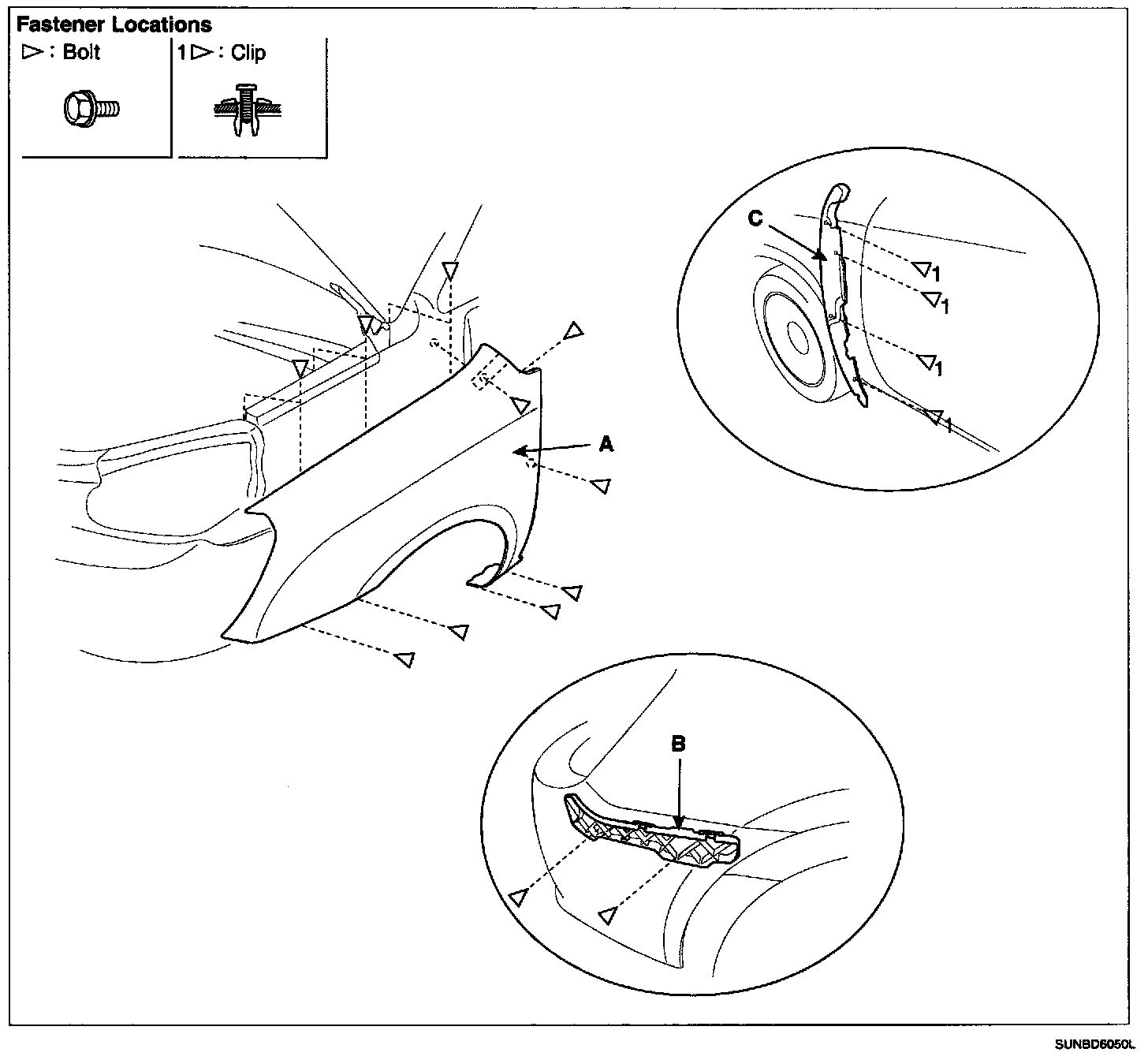

Side garnish (B), mud guide (C), cover (D)
2.
After loosening the
fender mounting bolts, then remove the fender (A).
3.
Installation is the reverse of removal.
