Scuff Plate: Service and Repair
DOOR SCUFF TRIM REPLACEMENTNOTE: -
Put on gloves to protect your hands.
-
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
-
Take care not to bend or scratch the trim and panels.
1.

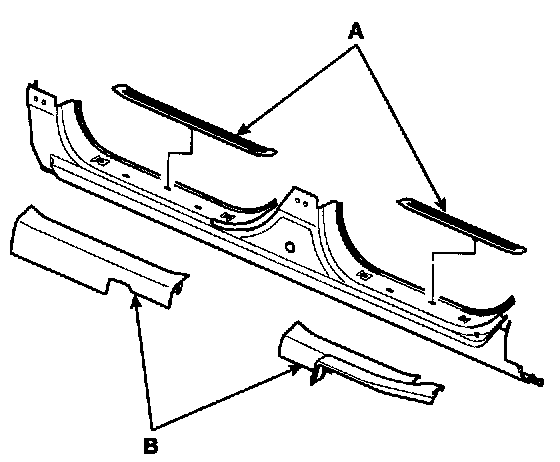

Remove the front door scuff trim (A).
2.
Installation is the reverse of removal.
NOTE: Replace any damage clips.
