Evaporator Temperature Sensor / Switch: Service and Repair
EVAPORATOR TEMPERATURE SENSORREPLACEMENT 1.
Remove the crash pad.
2.
Remove the cowl cross bar.
3.

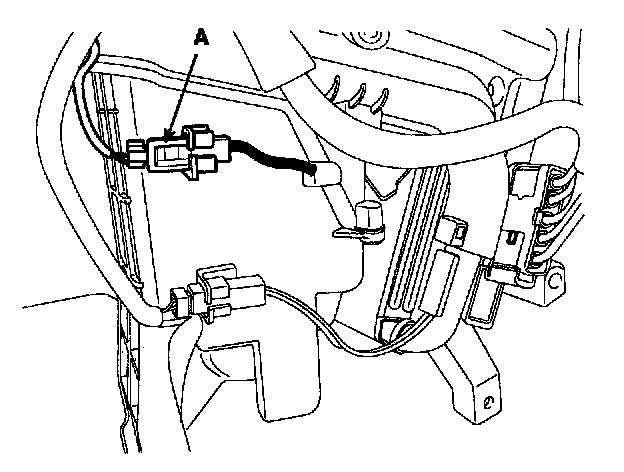

Disconnect evaporator sensor connector (A).
4.

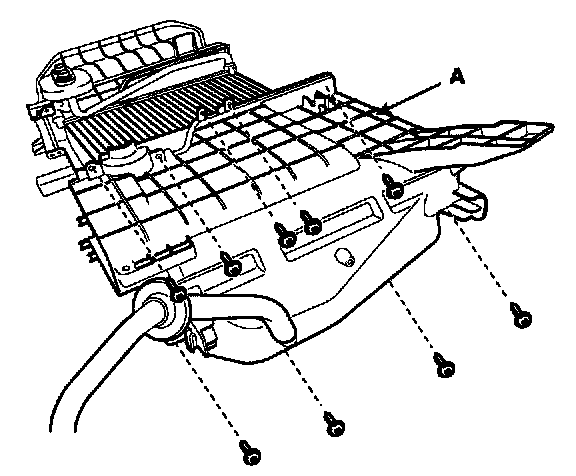

Remove the heater unit cover (A).
5.

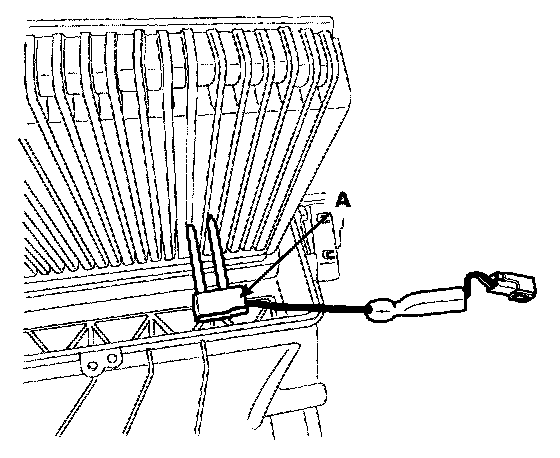

Remove the evaporator sensor (A).
6.
Installation is the reverse order of removal.
