Wheels: Testing and Inspection

RUN OUT INSPECTION
1. Jack up the vehicle.

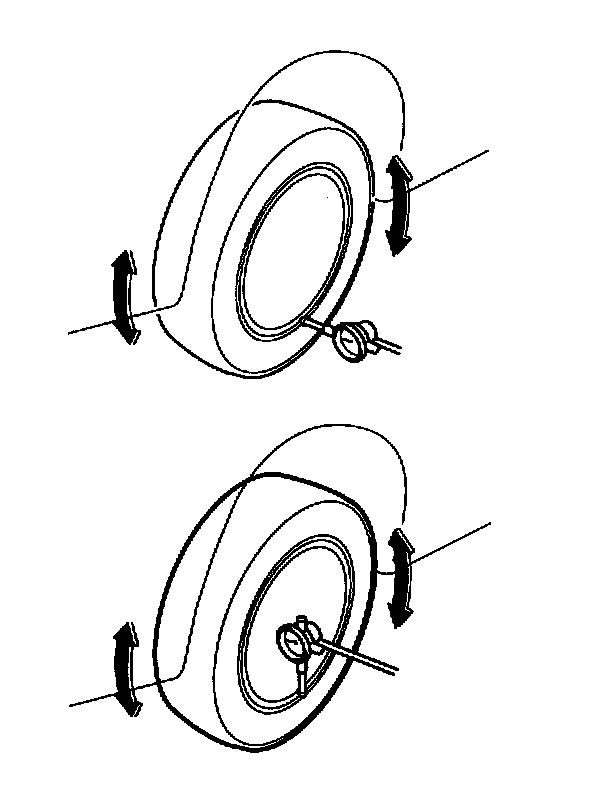

2. Measure the wheel Run-out by using a dial indicator as illustration below.

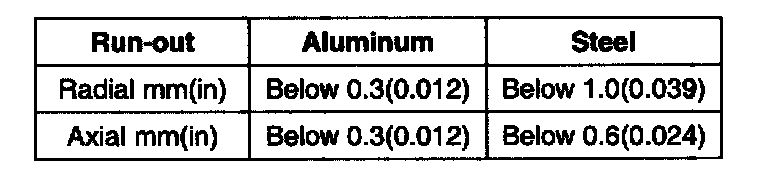

3. If measured value exceeds the standard value, replace the wheel.
