Output Speed Sensor
OUTPUT SPEED SENSOR DESCRIPTION OUTPUT SHAFT SPEED SENSOR ^
Type: Hall sensor
^
Current consumption:
22mA (MAX.) ^
Sensor body and sensor connector have been unified as one.

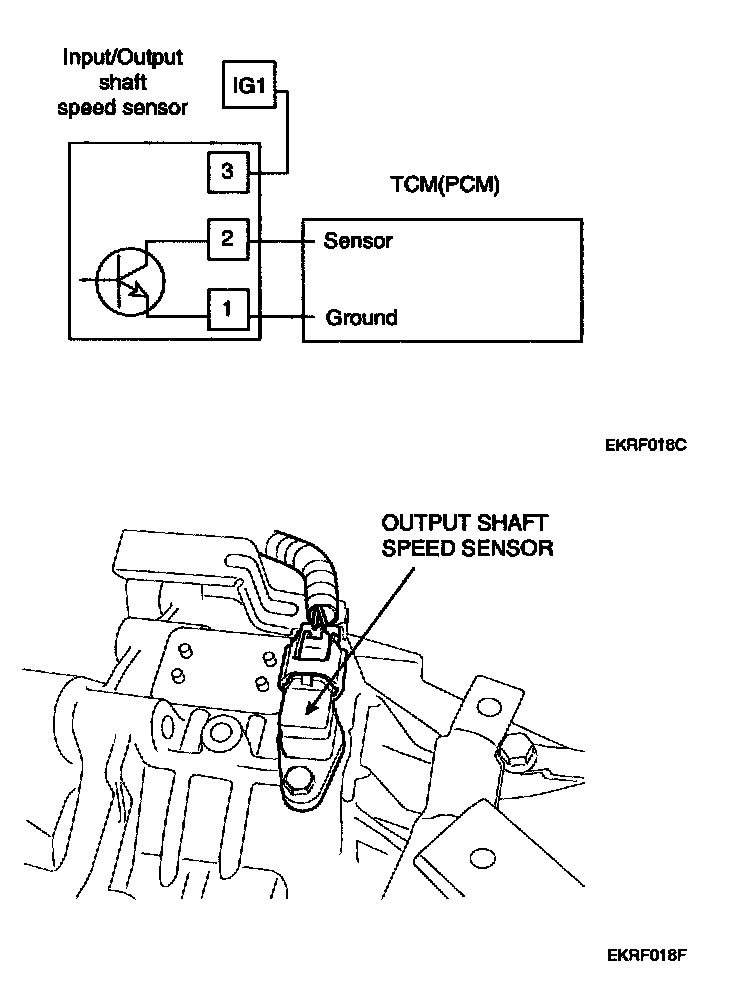

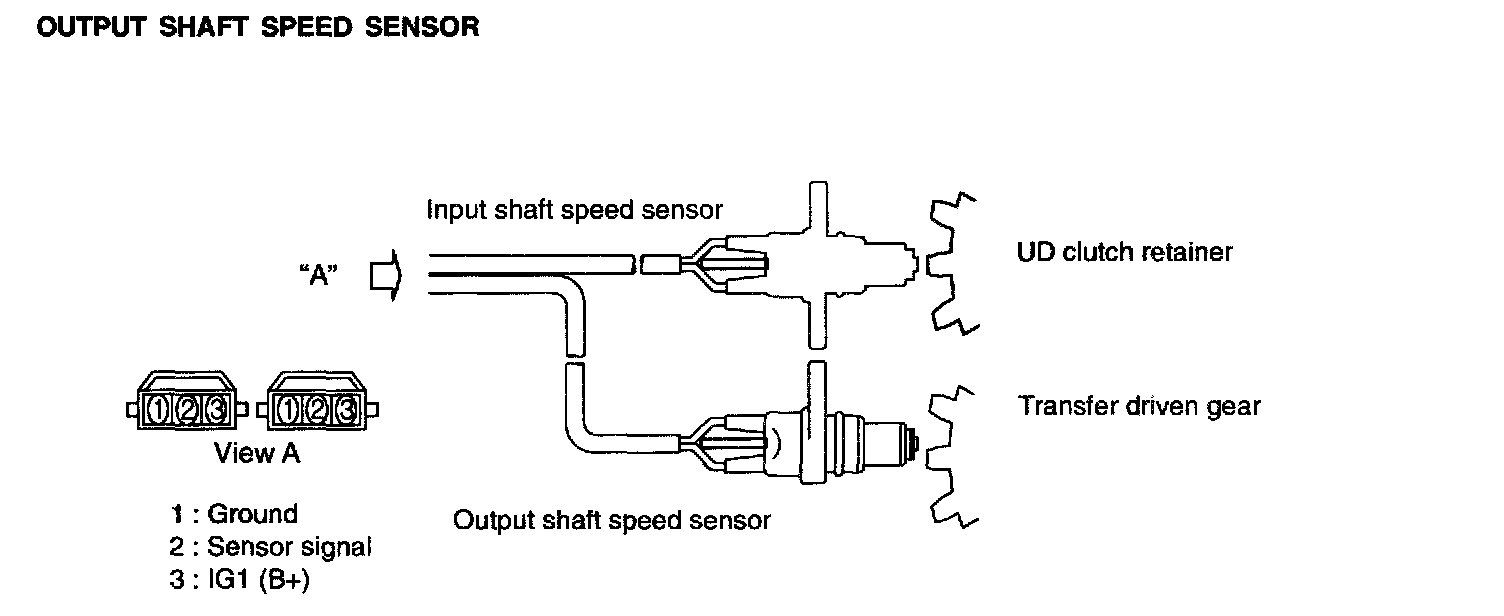

Output Shaft Speed Sensor:

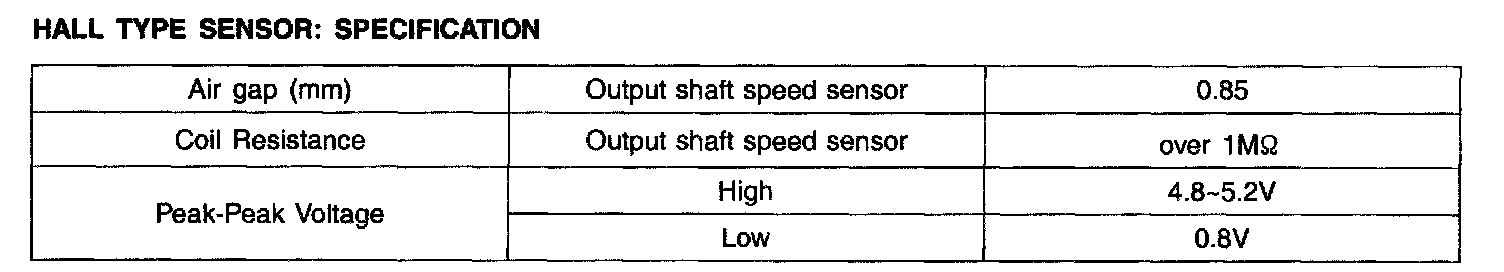

Hall Type Sensor: Specification:

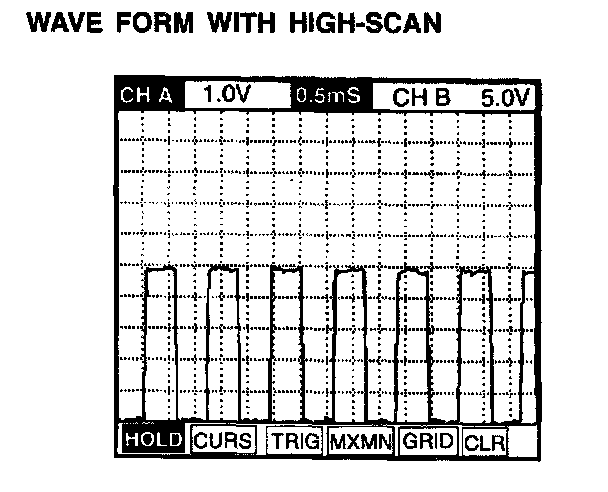

Wave Form With High-Scan:

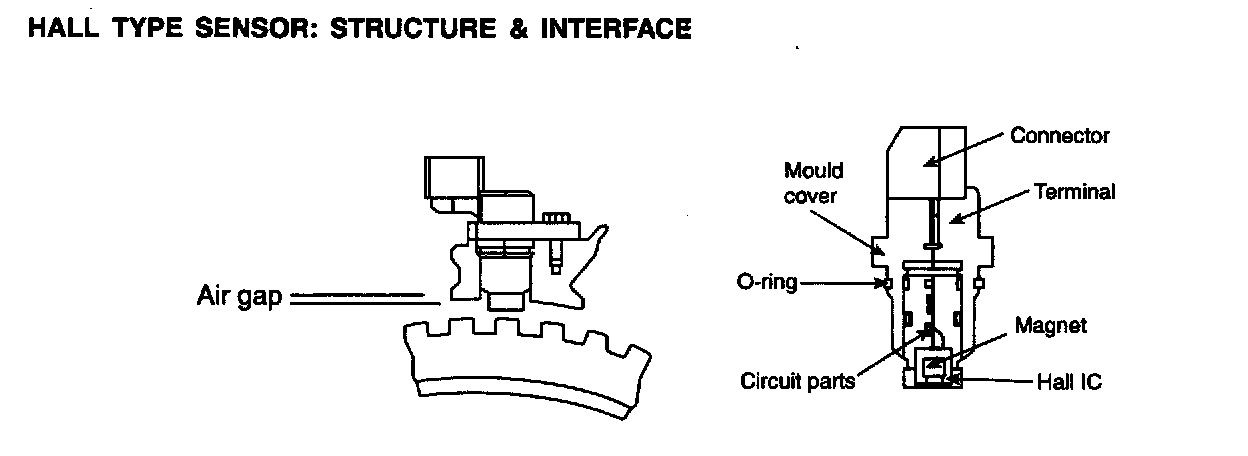

Hall Type Sensor: Structure & Interface:
