Windshield Washer Switch: Service and Repair

WINDSHIELD WIPER/WASHER SWITCH

REMOVAL
1. Disconnect the negative (-) battery terminal.

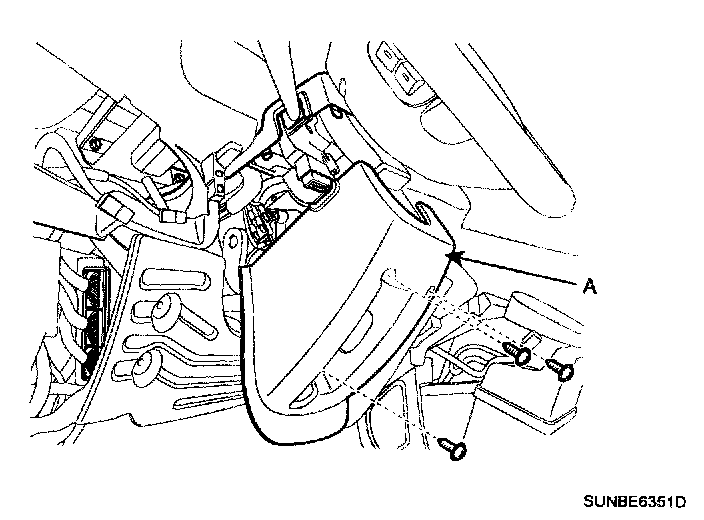

2. Remove the steering column upper and lower shrouds (A) after loosening 3 screws.

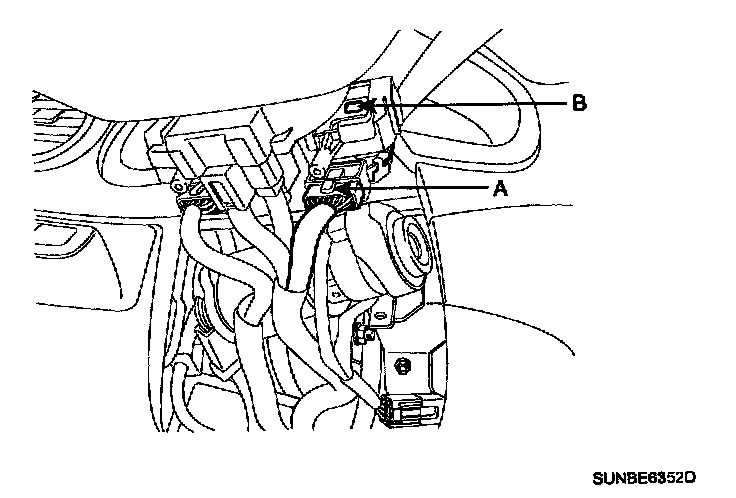

3. Remove the wiper switch (A) after disconnecting the connector with pushing the lock pin (B) and loosening 2 screws.

INSTALLATION
1. Install the windshield wiper switch.
2. Connect the wiper switch connector.
3. Install the steering column upper and lower shrouds.




INSPECTION

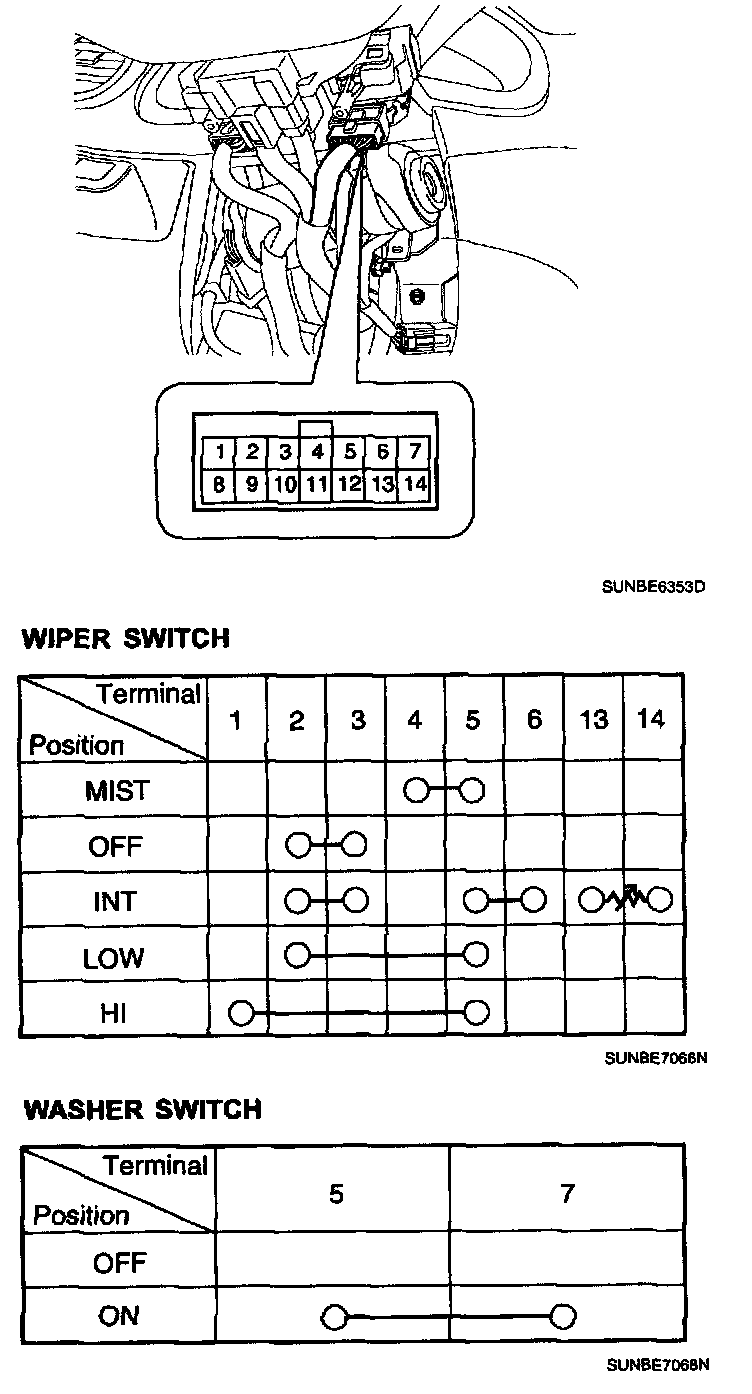

Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and washer switch.
