Body Control Module

BODY CONTROL MODULE

DESCRIPTION

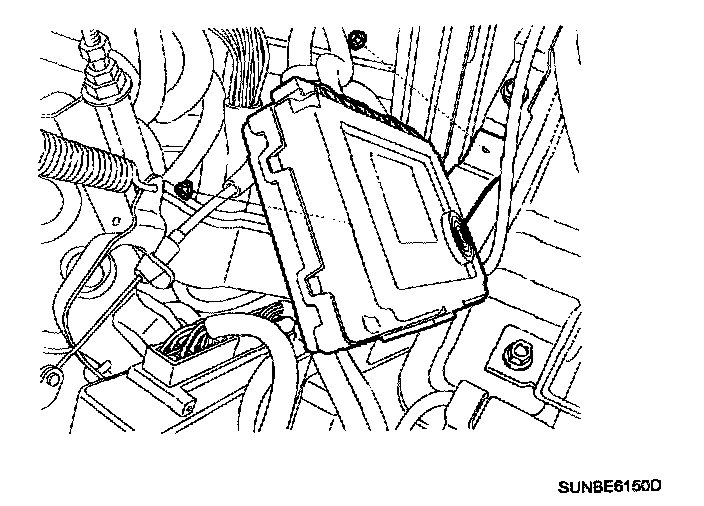

Body control module (A) receives various input switch signals controlling time and alarm functions for tail lamp, rear fog lamp, wiper control, buzzer warning, front deicer timer, central door lock, seat belt warning, key operated warning, over speed warning, ignition key hole illumination, room lamp control, power window timer, crash door unlock, key reminder, parking start warning, rear defogger timer, front deicer timer.
