Description

AUTOMATIC TRANSAXLE SYSTEM

DESCRIPTION

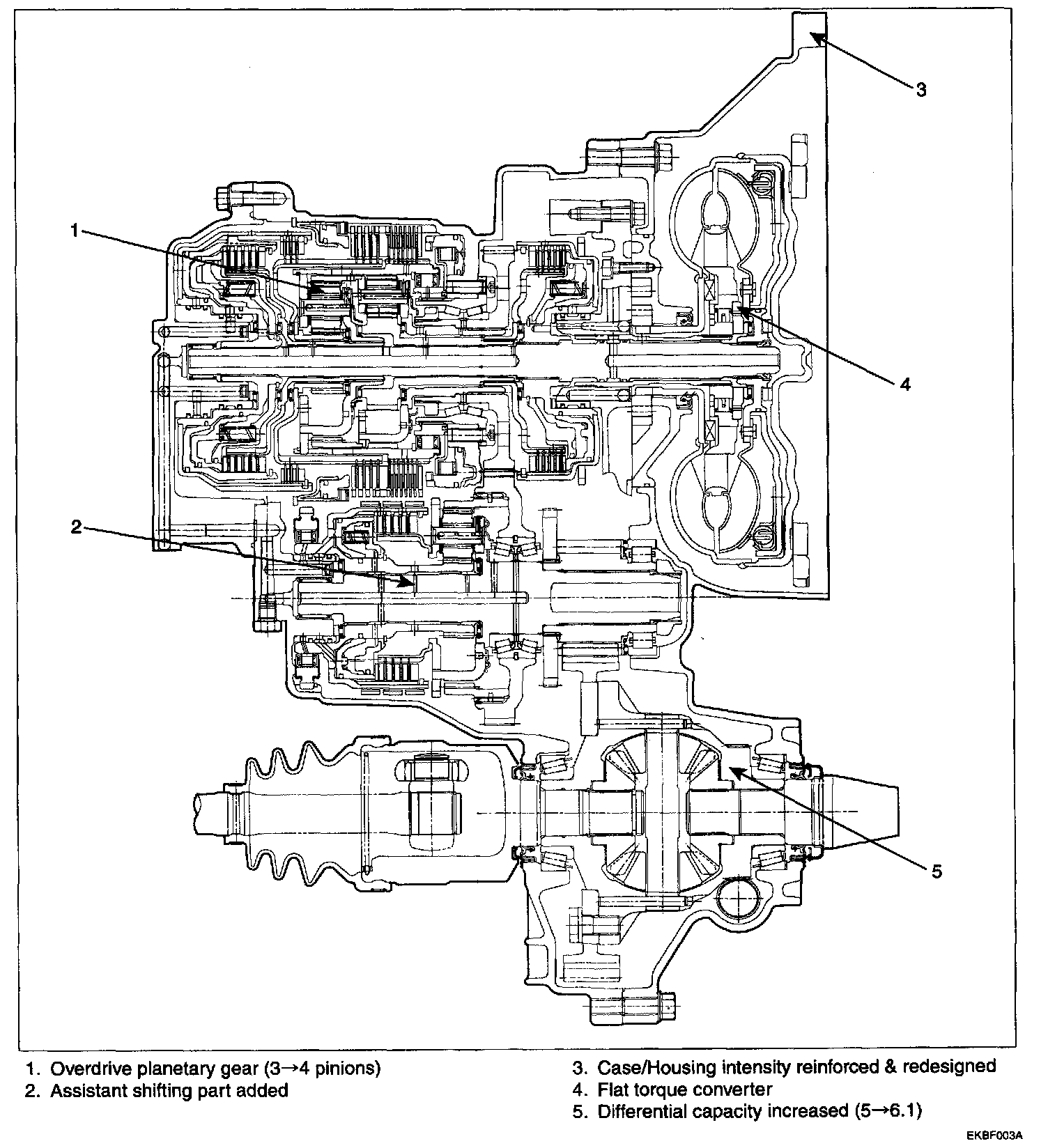

1. Structure & Technical highlights





2. Variable Line Pressure Control
^ Description
- Form the most suitable line pressure according to the vehicle driving condition
^ Special Features
- VFS (Variable Force Solenoid) valve(For varying line pressure)





3. Case/Housing intensity reinforced
^ Description
- Case/Housing intensity reinforced
^ Special Features
- Converter housing intensity reinforced(Ribs added and thickness increased)
- Most suitable stiff reinforcement through analysis
^ Effects
- Intensity increased and banding vibration decreased
- NVH Performance improvement

4. Flat torque converter
^ Description
- Apply a flat type torque converter
^ Special Features
- Torque converter width decreased
- Reducing valve added(Stabilize control pressure during shifting)
^ Effects
- Improved power transmission efficiency and fuel consumption
- Maximum torque increased
- Blade design through three-dimensional flow analysis
^ Effects
- Full length reduction
- Weight reduction
