Front Bumper: Service and Repair










REPLACEMENT

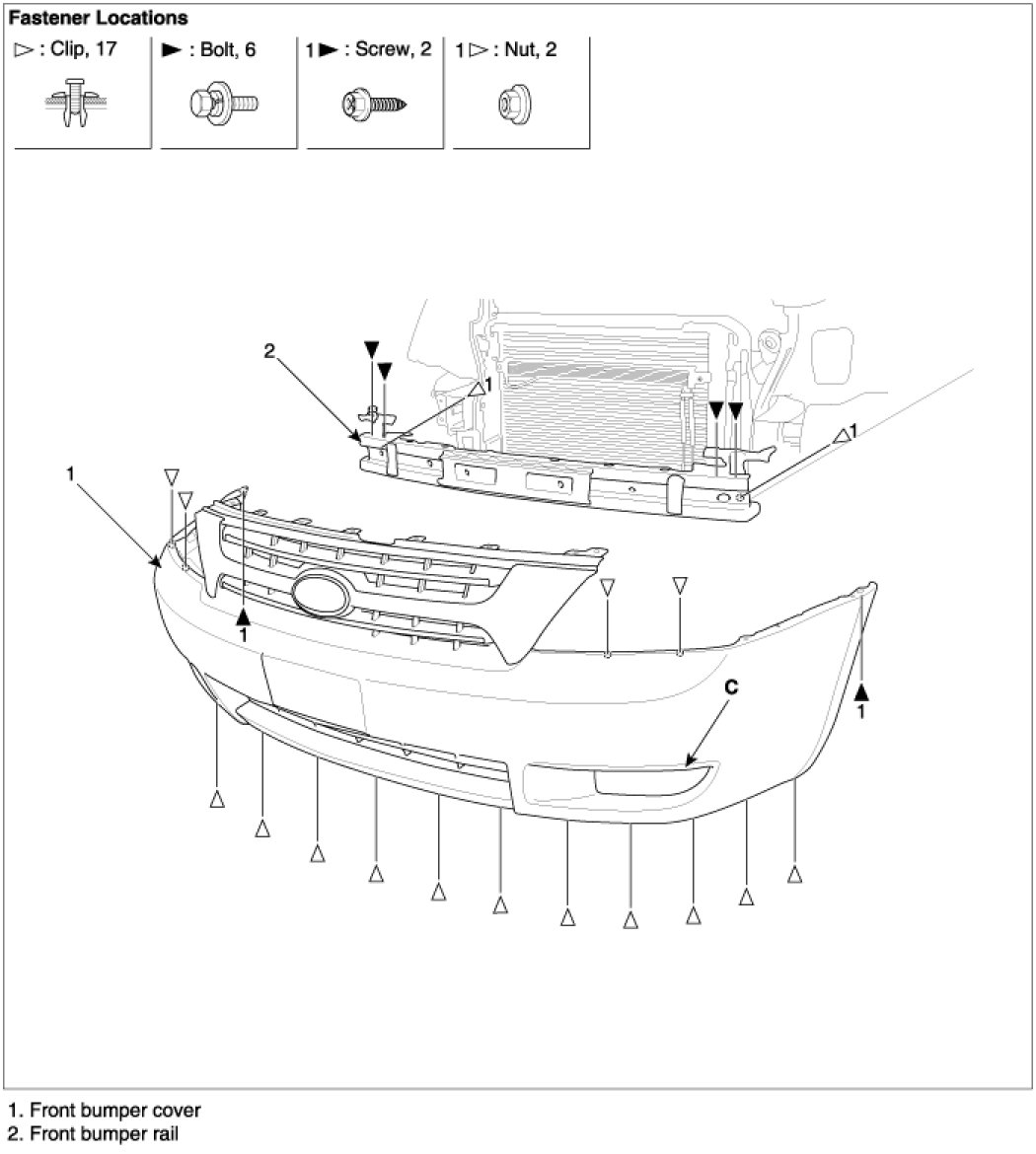

FRONT BUMPER COVER REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damage.
- Take care not bend or scratch the cover and other parts.

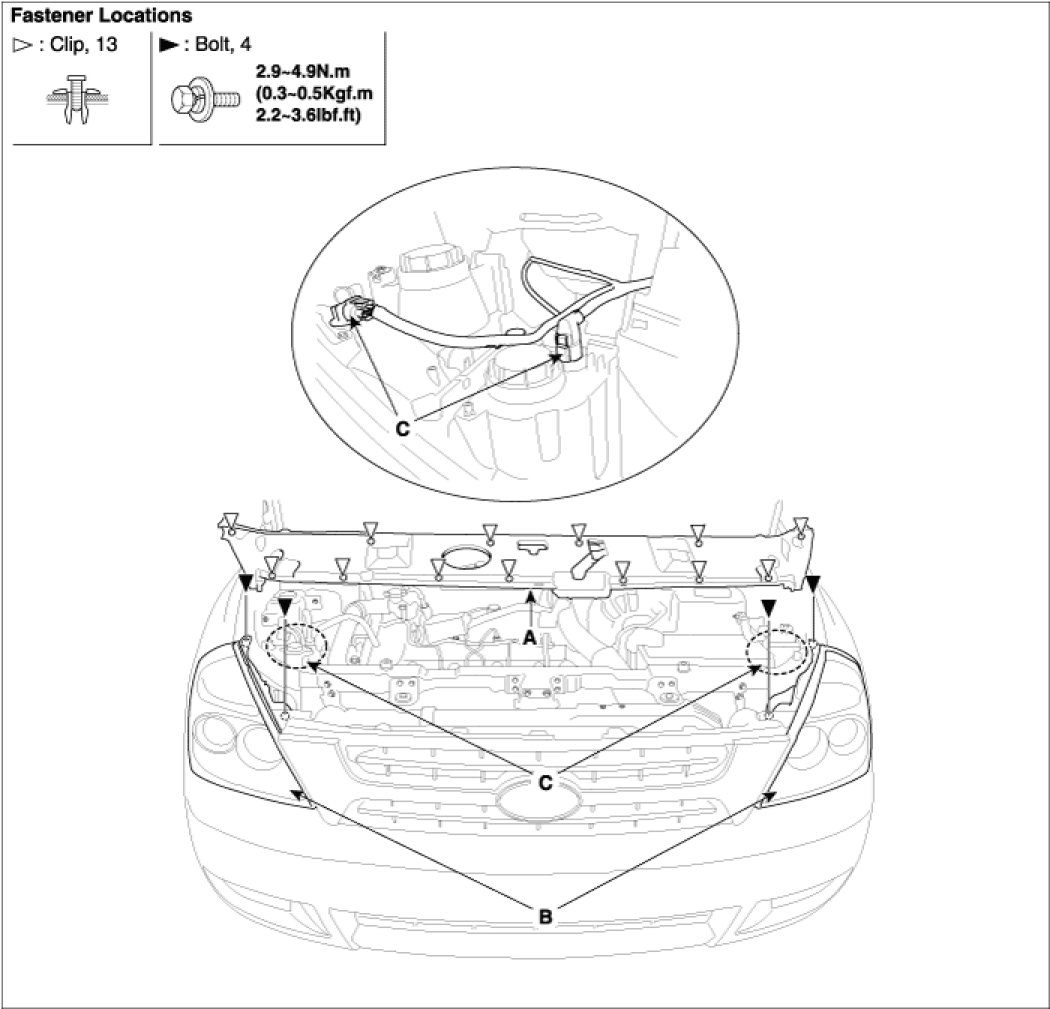

1. Disconnect the connector (C).
2. Remove the headlamp (B), under cover (A).




3. Loosen the front bumper mounting screws and clips.
4. Remove the front bumper.
5. Remove the connector (C).
6. Installation is the reverse of removal.
