Door Lock Cylinder Switch: Testing and Inspection
INSPECTIONFRONT DOOR KEY SWITCH 1.
Remove the front door trim panel.
2.

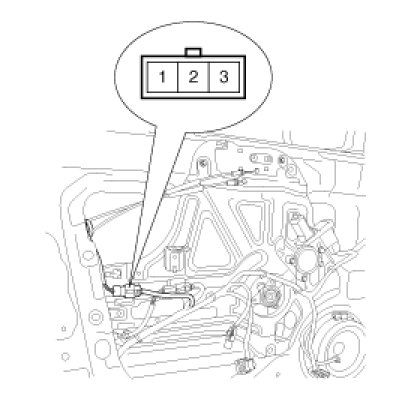

Disconnect the 3P connector from the actuator.
3.

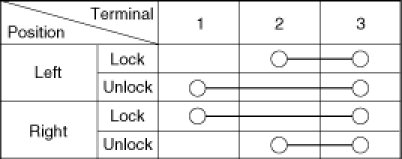

Check for continuity between the terminals in each switch position according to the table.
