Parking Brake System: Adjustments

ADJUSTMENT

ADJUSTMENT OF REAR BRAKE SHOE CLEARANCE
1. Raise the front of the vehicle, and make sure it is securely supported.
2. Remove the rear wheel and tire from the rear hub.

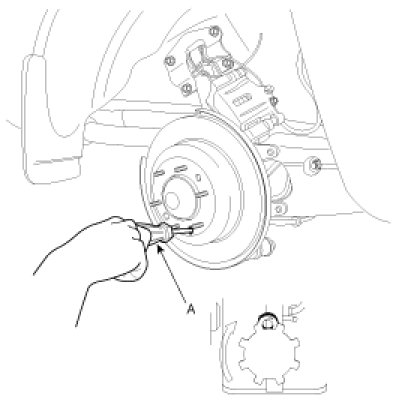

3. After removing the plug from the disc, rotate the toothed wheel by a screw driver until the disc is not moving, and then return it by 5 notches.





ADJUSTMENT PROCEDURE OF DIH FOOT PARKING BRAKE

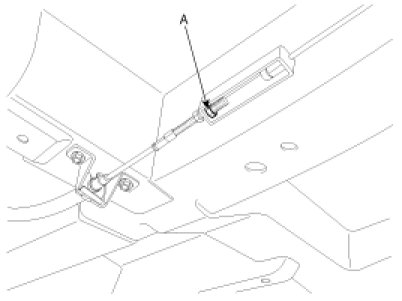

1. Adjust the adjusting nut (A) so that parking pedal stoke is to be 88 - 98 mm(3.46 - 3.86 in) when operating effort is 200 N(20 kgf, 44 lb) after full stroke operation of parking pedal over 3 times for setting parking wire.





CAUTION:
1. The parking brake adjustment must be carried out after adjusting the rear shoe.
2. After adjusting parking brake, notice following matter;
1) Must be free from clearance between adjusting nut and pin.
2) Check securely that the bake is not dragging

BED-IN PROCEDURE FOR DIH FOOT PARKING BRAKE
