Mechanical Specifications
SPECIFICATIONSO.D=Outer Diameter
I.D=Inner Diameter
NOTE:ABS : Anti-lock Brake System
ESC : Electronic Stability Control

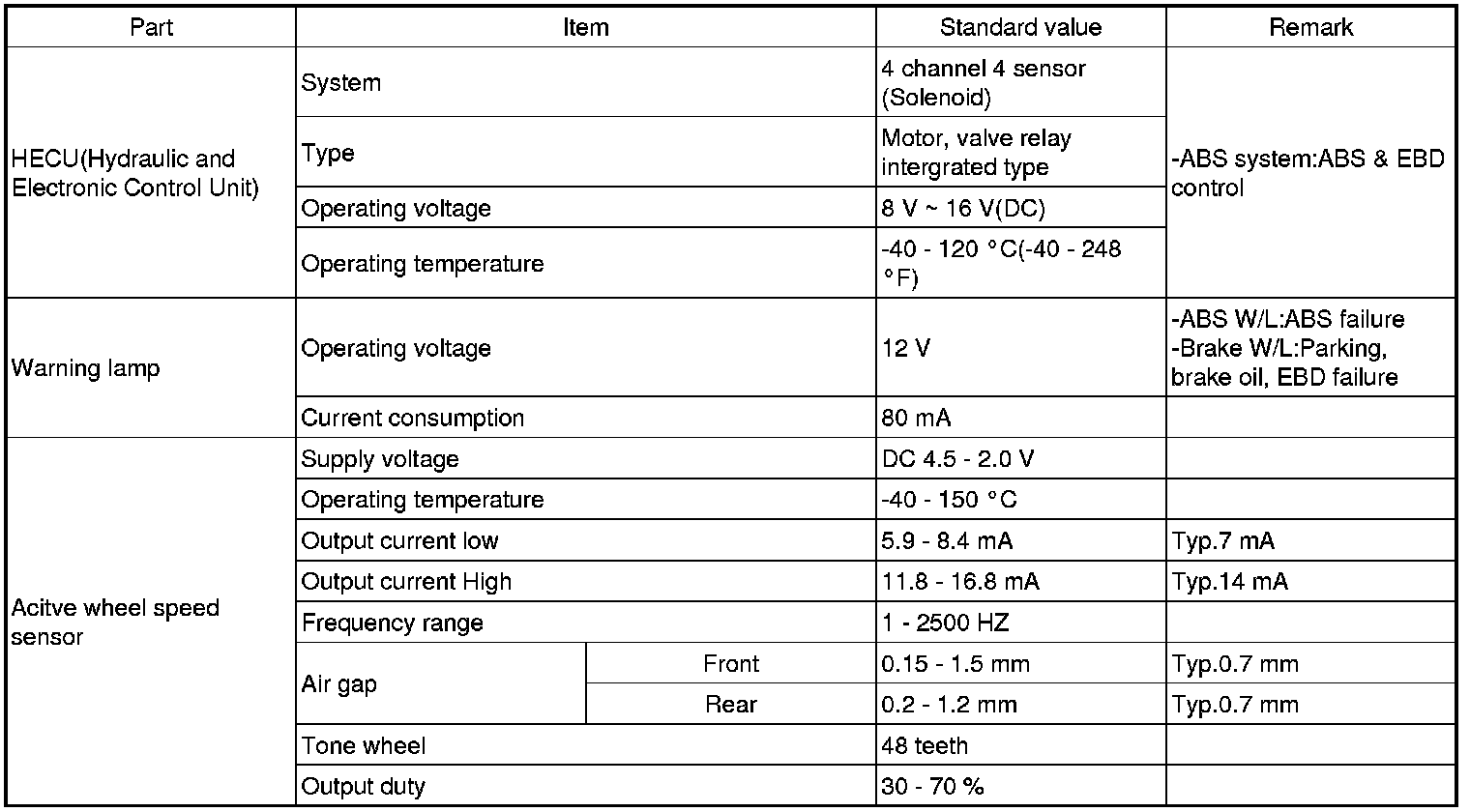

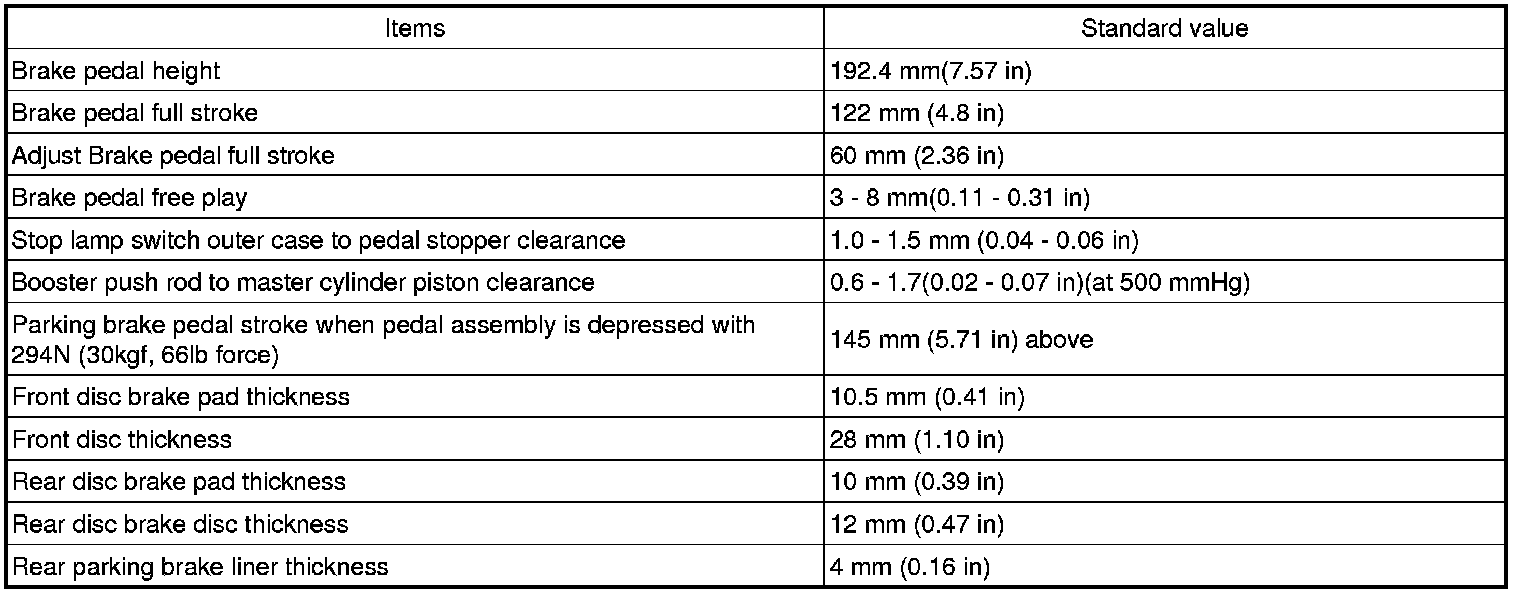

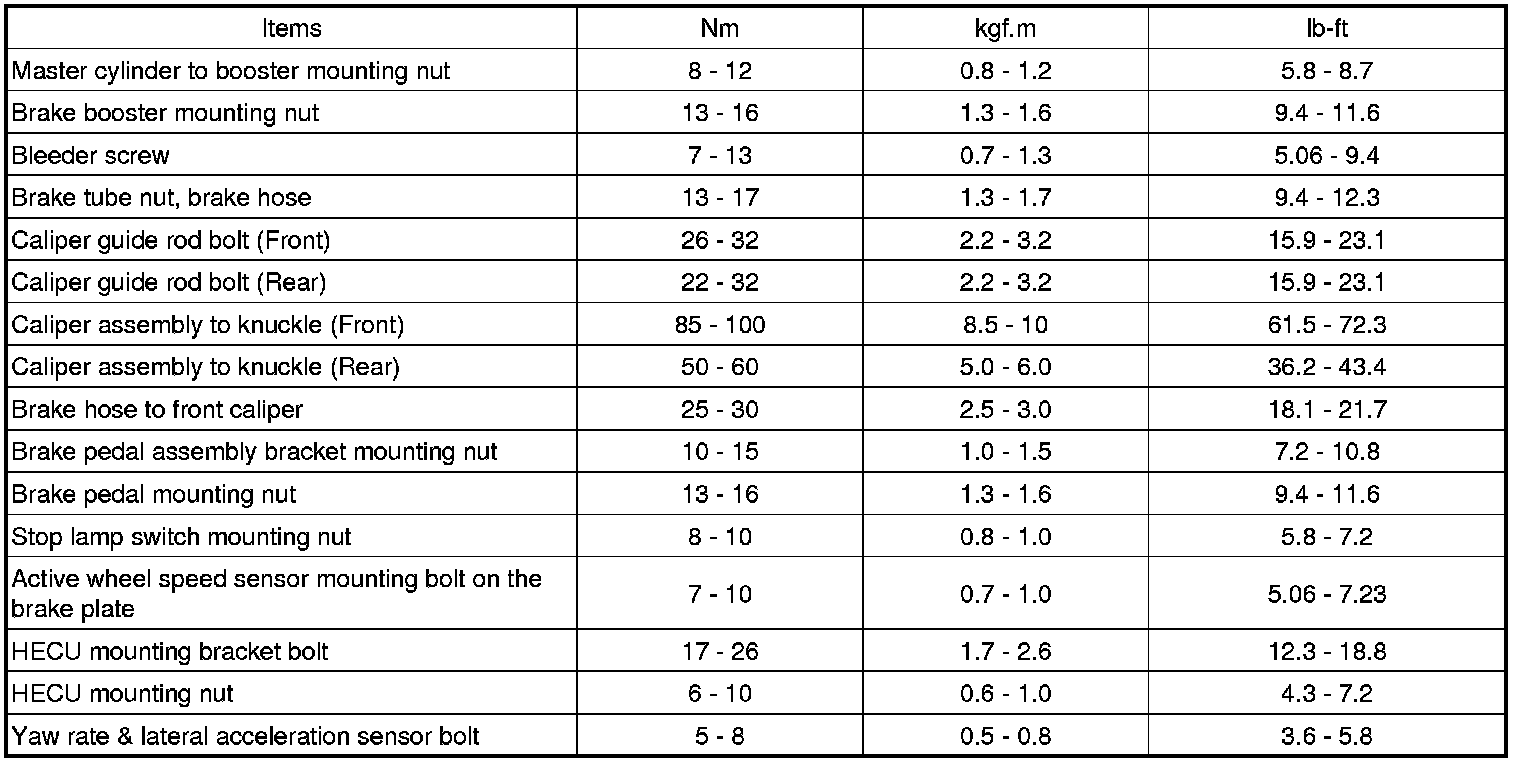

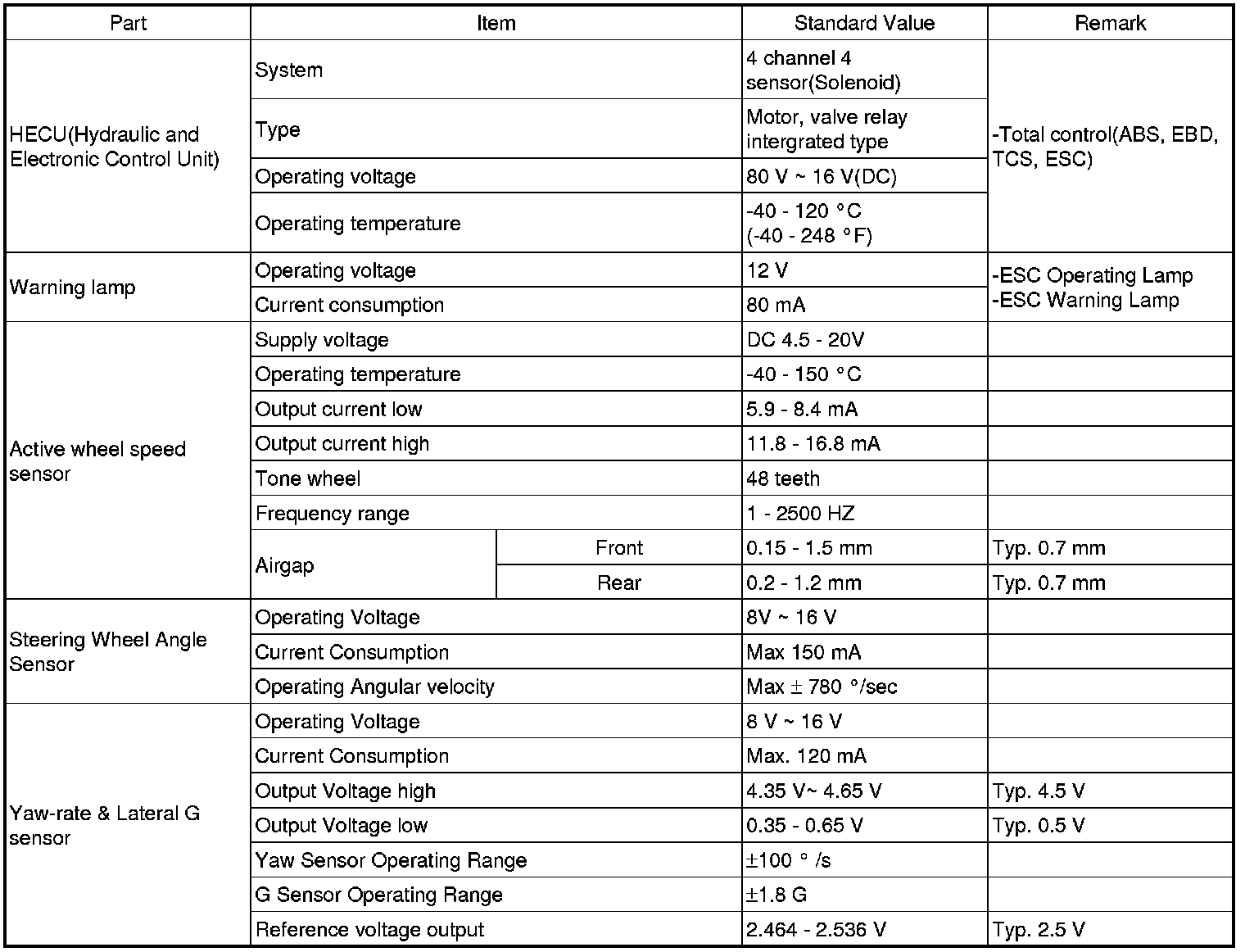

SERVICE STANDARDTIGHTENING TORQUESPECIFICATION (ABS)SPECIFICATION(ESP)Front Brake disc run out limit
0.03 mm (0.0012 in.) or less (new one)
Rear Brake disc run out Limit
0.05 mm (0.002 in) or less (new one)
