Ignition System: Service and Repair
REMOVALIGNITION COIL 1.
Remove the engine cover.
2.
Disconnect the

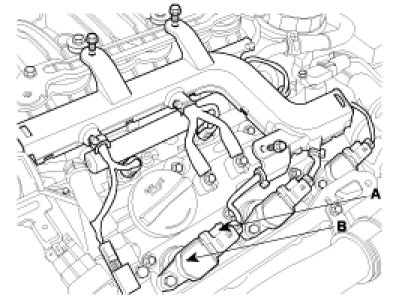

ignition coil connector(A).
NOTE: When removing the
ignition coil connector, pull the lock pin(A) and push the clip(B).
3.
Remove the
ignition coil (B).
4.
Installation is the reverse of removal.
INSPECTION OF ELECTRODES 5.
Check the electrode gap (A).
Standard : Unleaded : 1.0 - 1.1 mm (0.0394 - 0.0433 in.)
