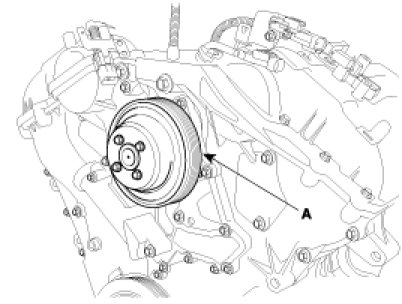

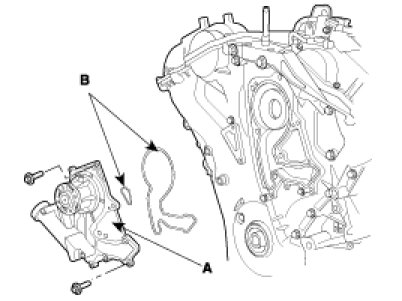

Water Pump
Water pump with 12 boltsPump Bolts
21.56 - 23.52 Nm (2.2 - 2.4 kgf.m, 15.91 - 17.36 ft. lbs.)
9.80 - 11.7 6Nm (1.0 - 1.2 kgf.m, 7.23 - 8.68 ft. lbs.)
Water pump with 4 boltsPump Bolts
7.84 - 9.80 Nm (0.8 - 1.0 kgf.m, 5.78 - 7.23 ft. lbs.)
