Automatic Transmission/Transaxle

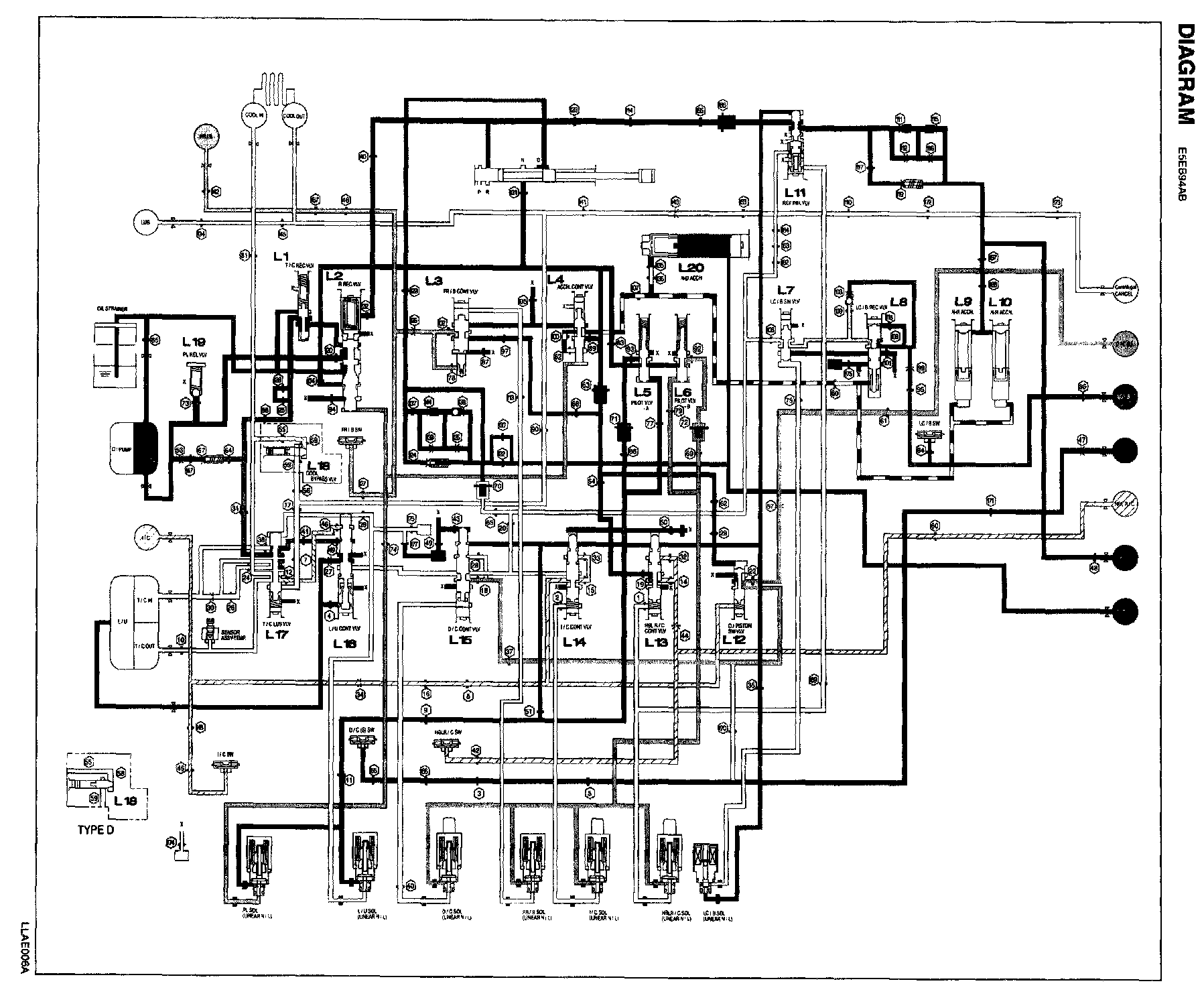

VALVE BODY FLUID PRESSURE CIRCUIT DIAGRAM Valve Body Fluid Pressure Circuit Diagram:
* Refer to body valves for L (number) valve name.

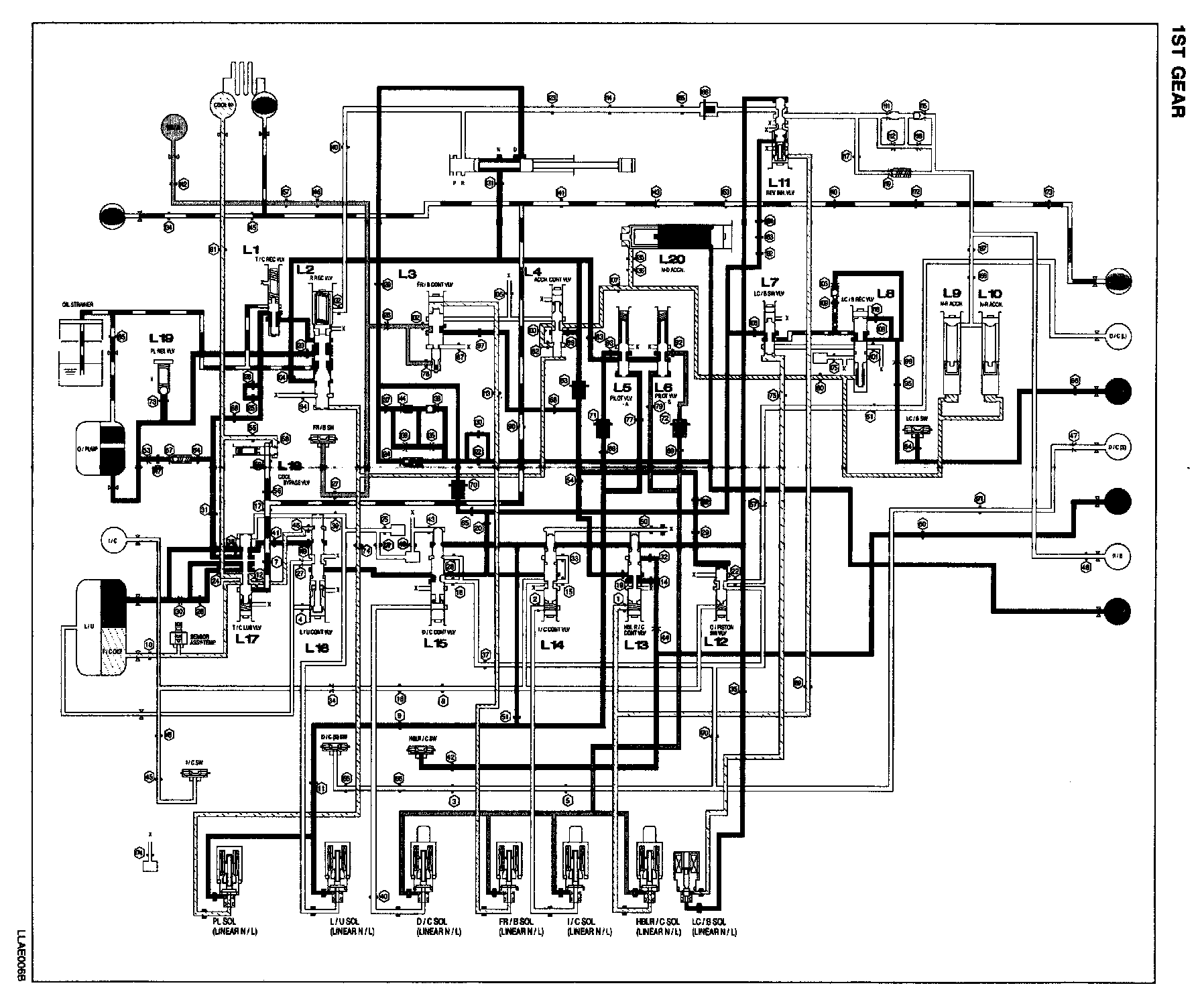

1st Gear:

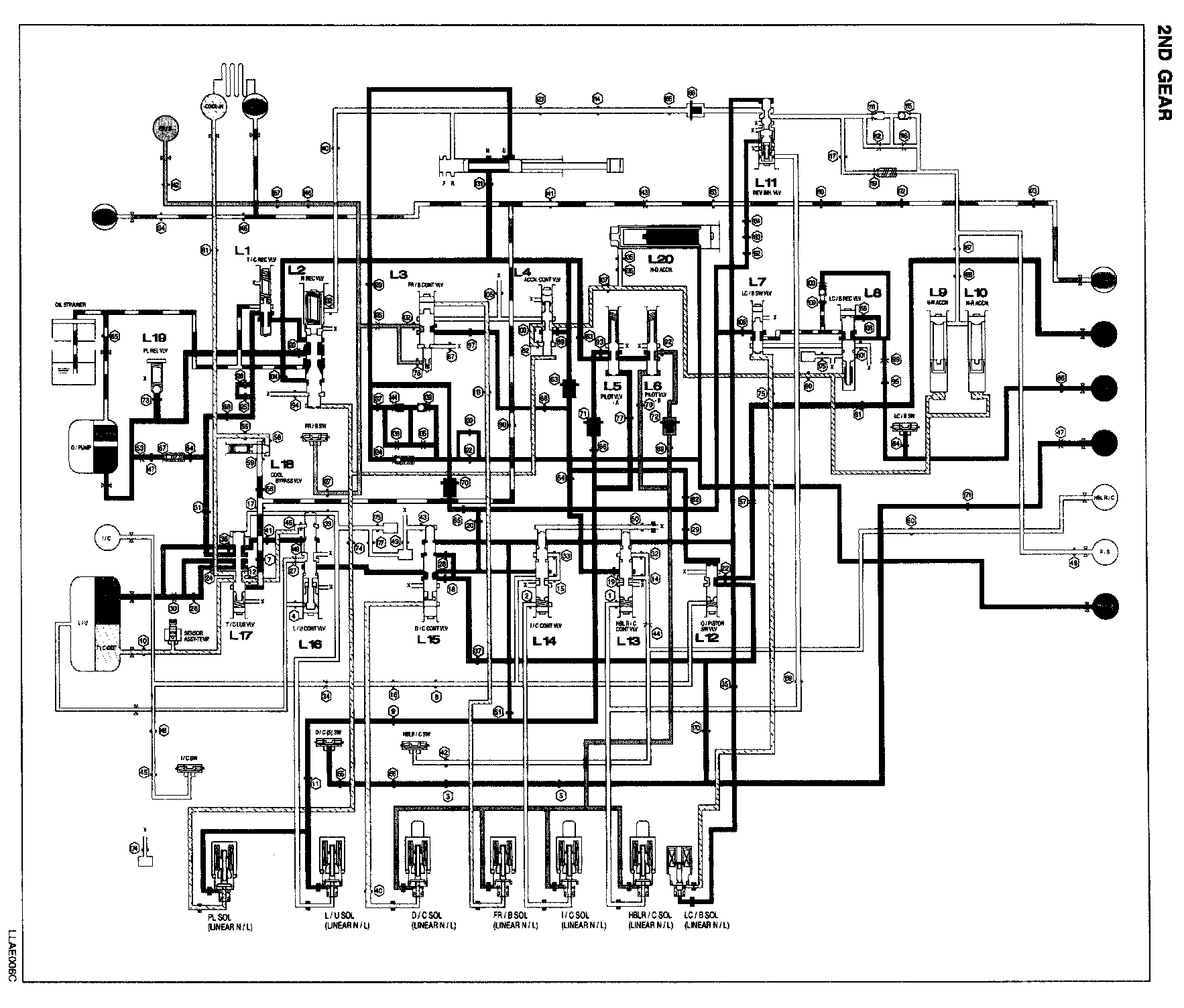

2nd Gear:
3rd Gear:

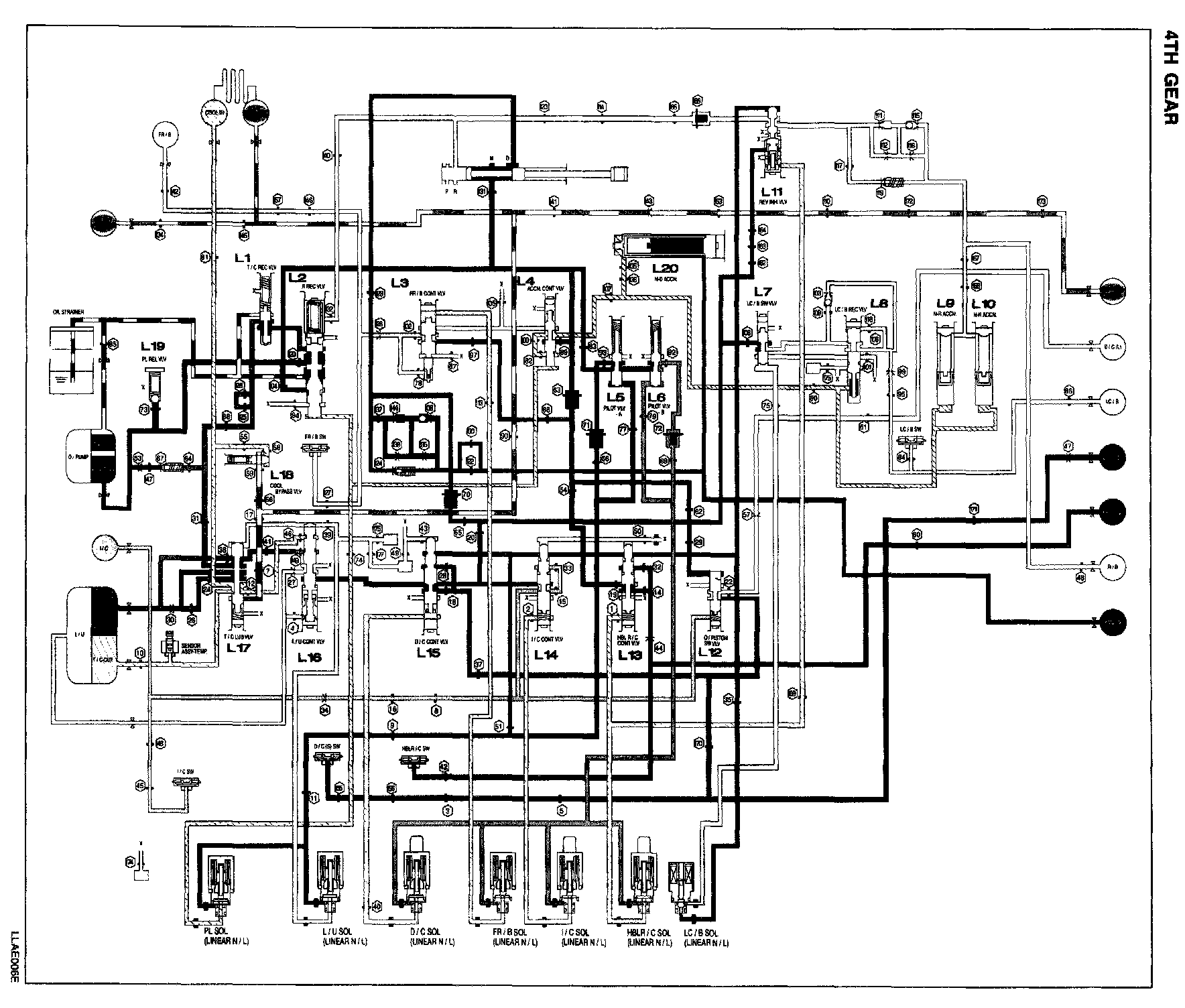

4th Gear:
5th Gear (Lock-Up):

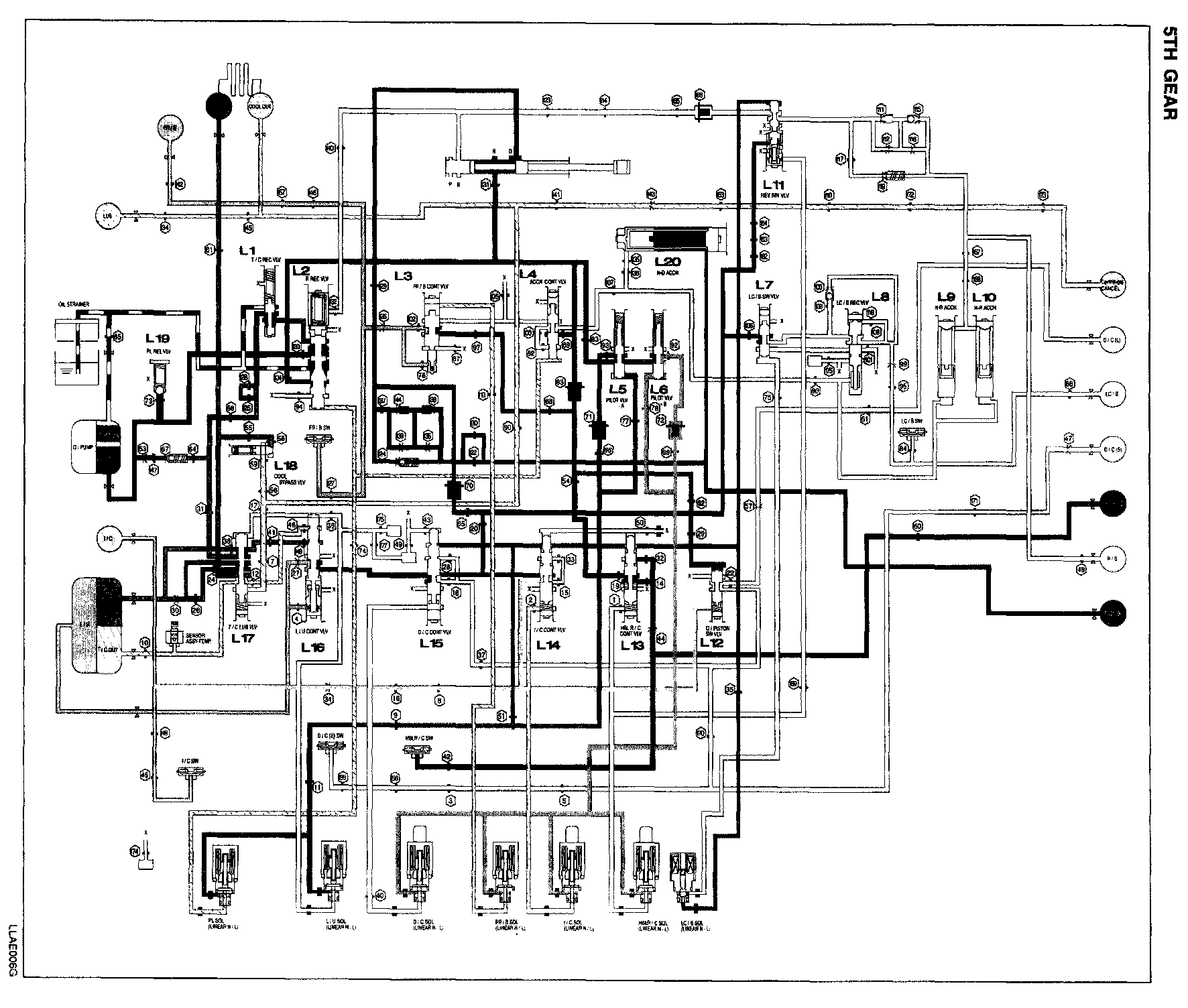

5th Gear:
P&N Range:

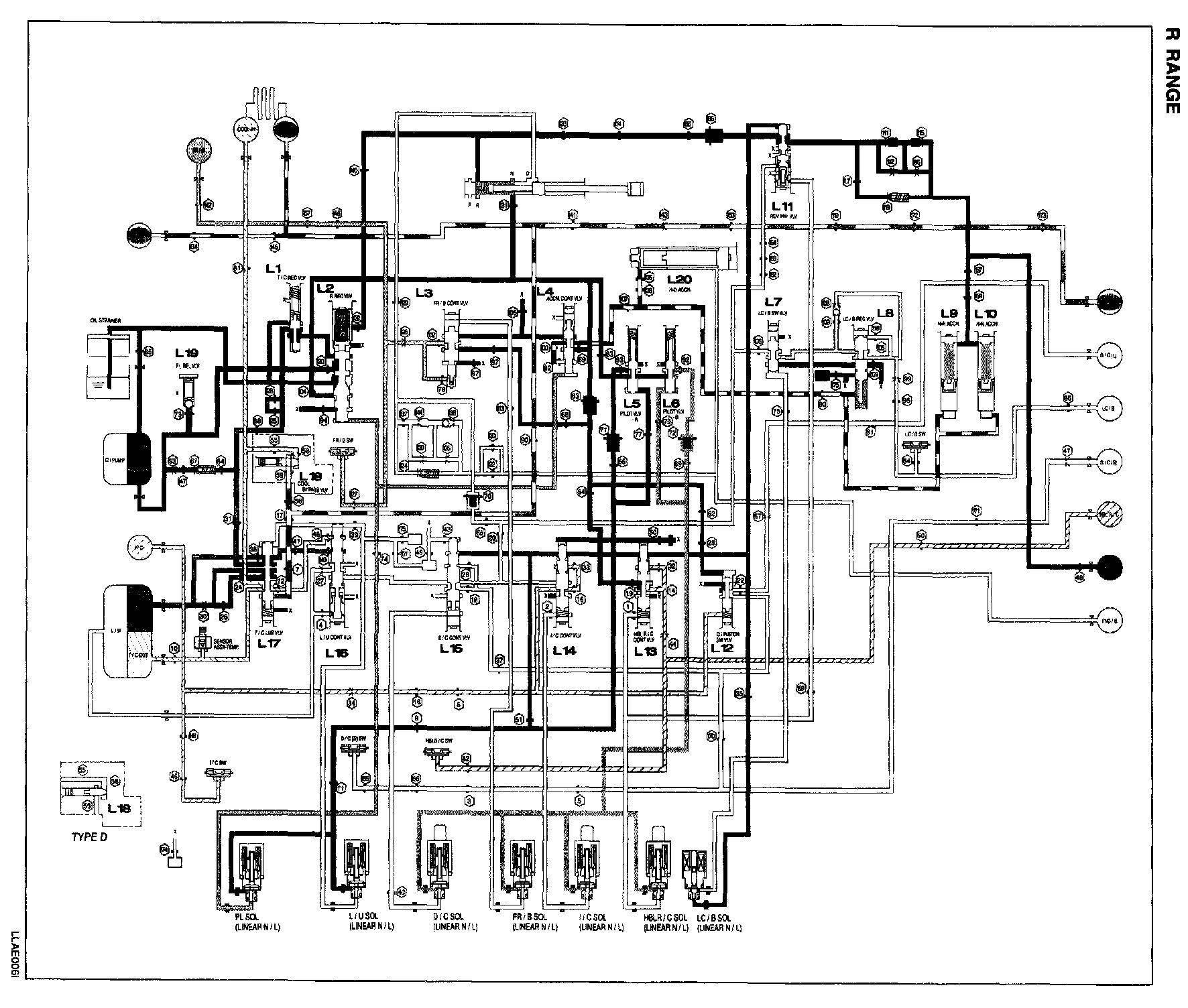

R Range:
