Disassembly











DISASSEMBLY

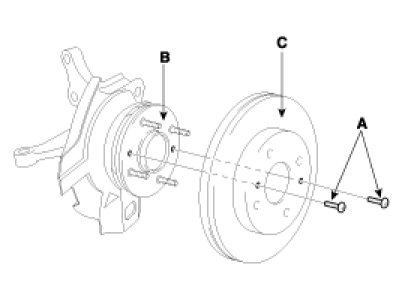

1. After removing the fixed screws(A) mounting the brake disc(C), remove the brake disc(C) from the hub(B).

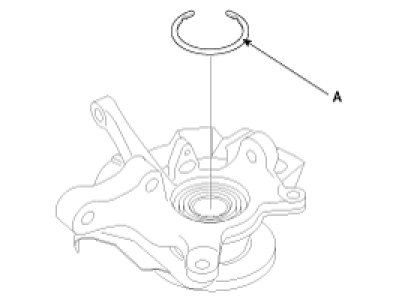

2. Remove the snap ring(A).

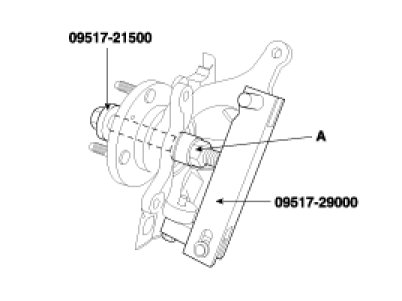

3. Install the special tools(09517-29000, 09517-21500) as shown in illustration below.




4. Separate the hub from the knuckle by turning nut(A) of the special tool(09517-21500).
5. Using a plastic hammer, remove the dust cover from the knuckle.

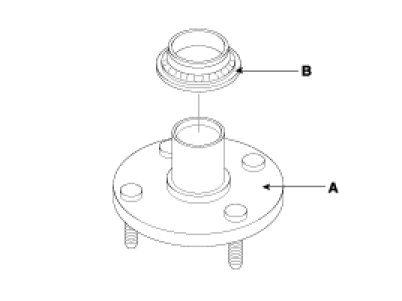

6. Remove the bearing inner race(B) from the hub(A) using the special tool (09495-33000).

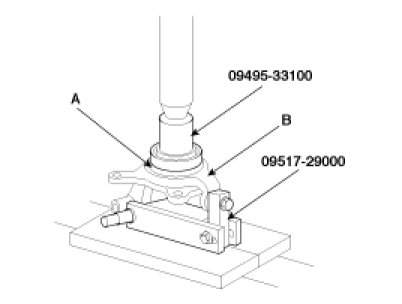

7. Using the special tools (09495-33100, 09517-29000), remove the wheel bearing outer race(A)from the knuckle(B).
