Door Sensor/Switch (For Alarm): Testing and Inspection
INSPECTIONDOOR WARNING SWITCH 1.
Remove the steering column upper & lower shrouds (A) after loosening 3 screws.
2.

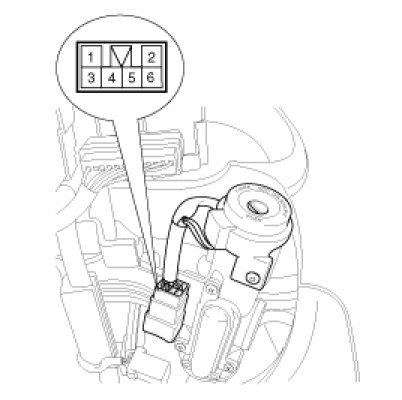

Disconnect the 6P connector from the door warning switch.
3.
Check for continuity between the terminals in each position according to the table.
