Fluid - M/T: Service and Repair

SERVICE ADJUSTMENT PROCEDURE

TRANSAXLE GEAR OIL LEVEL

REPLACEMENT
1. With the vehicle parked on a level surface, remove the drain plug.

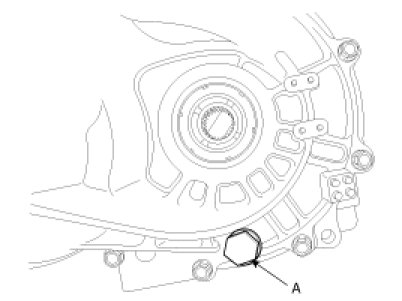

2. Drain the transaxle oil after loosening the drain plug(A).

3. Install the drain plug with new washer.

Drain plug tightening torque:
60-80 Nm (600-800 kg-cm, 43-58 lb-ft)

4. Add new oil through the filler plug hole and, fill it just below the plug opening

Standard oil SAE 75W/85, API GL-4
Oil capacity: 1.9 liter (2.0 US qt, 1.67 Imp qt)
