Auxiliary Input / Output Jack: Service and Repair
REMOVAL 1.
Remove the floor console(A).
2.
Disconnect the jack assembly connector from the floor console.
3.

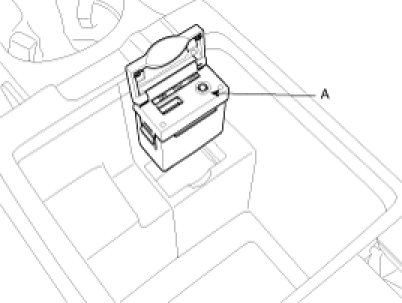

Remove the AUX jack(A) from the floor console after loosening 2 screws.
INSTALLATION 1.
Install the AUX jack.
2.
Connect the AUX jack connector.
3.
Install the floor console.
