Disassembly





Disassembly

1. Remove the throttle body assembly.

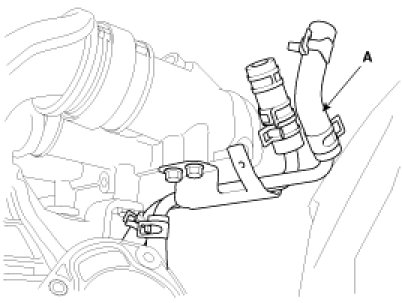

2. Remove the purge/vacuum pipe & hose assembly(A).




3. After removing the connection hose clamp, remove the stub manifold from the inlet manifold assembly.
