Reassembly
REASSEMBLY 1.

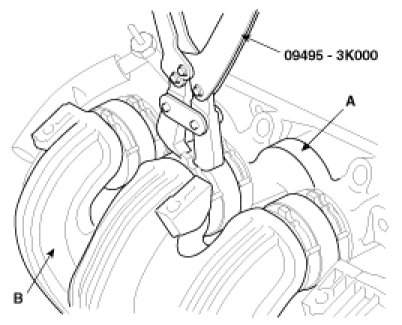

Using the SST(09495-3K000) clamp the stub manifold(A) and the inlet manifold(B) with the connection hose.
2.
Install the purge/vacuum pipe and hose assembly(A).
Tightening torque : 9.8 - 11.8 Nm(1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
3.
Install the throttle body assembly.
Tightening torque : 7.8 - 9.8 Nm(0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
