Reassembly








REASSEMBLY

1. Install the hub bearing to the knuckle assembly.

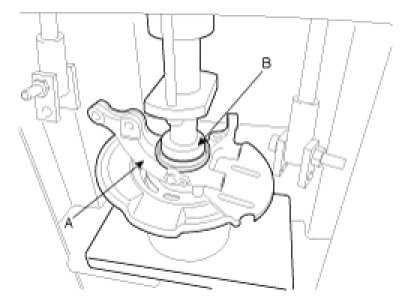

(1) Lay the knuckle assembly (A) on press.
(2) Lay a new hub bearing upon the knuckle assembly (A).
(3) Lay a suitable adapter (B) upon the hub bearing.
(4) Install the hub bearing to the knuckle assembly by using press.

CAUTION:
- Do not press against the inner race of the hub bearing because that can cause damage to the bearing assembly.
- Always use a new wheel bearing assembly.




2. Install the hub assembly to the knuckle assembly.

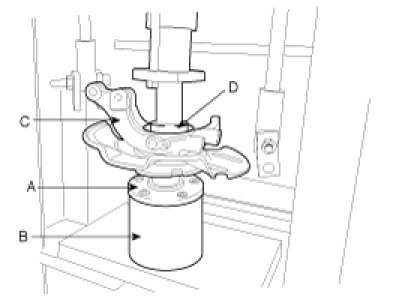

(1) Lay the hub assembly (A) upon a suitable adapter (B).
(2) Lay the knuckle assembly (C) upon the hub assembly (A).
(3) Lay a suitable adapter (D) upon the hub bearing.
(4) Install the hub assembly (A) to the knuckle assembly (C) by using press.

CAUTION:
- Do not press against the inner race of the hub bearing because that can cause damage to the bearing assembly.




3. Install the snap ring (A).
