Camshaft Bearing Cap Torque

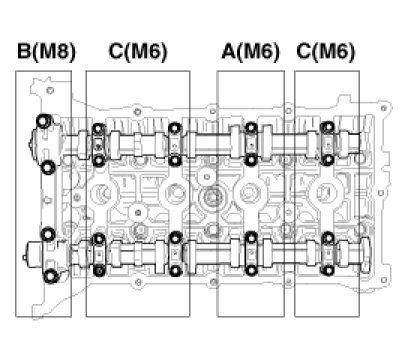

Camshaft Bearing Cap

Tightening order
Group A -> Group B -> Group C.

Tightening torque
M6 10.78 - 12.74 Nm (1.1 - 1.3 kgf.m, 7.95 - 9.39 lb-ft)
M8 27.44 - 31.36 Nm (2.8 - 3.2 kgf.m, 20.24 - 23.14 lb-ft)
