Overhaul
DISASSEMBLY 1.
Remove the
alternator cover(A) using a screw driver(B).
2.
Loosen the mounting bolts(A) and disconnect the brush holder assembly(B).
3.
Remove the slip ring guide(A).
4.

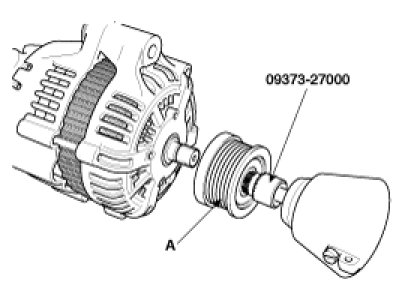

Using the SST(09373-27000), remove the nut, pulley(A) and spacer.
5.
Loosen the 4 through bolts(A).
6.
Disconnect the rotor(A) and cover(B).
7.
Reassembly is the reverse order of disassembly.
