Transmission Temperature Sensor/Switch: Service and Repair
REPLACEMENT 1.
Remove the automatic transaxle assembly.
2.
Remove the valve body cover.
3.
Disconnect the oil temperature sensor connector.
4.

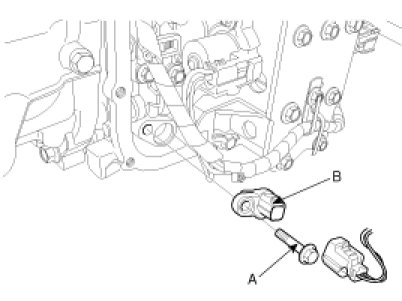

Remove the oil temperature sensor(B), loosening the mounting bolt(A).
5.
Replace the sensor with the new one and reassemble the rest of the parts.
