Front Seat








REPLACEMENT

SEAT BACK COVER REPLACEMENT
1. Remove front seat assembly.
2. Remove the recliner cover.

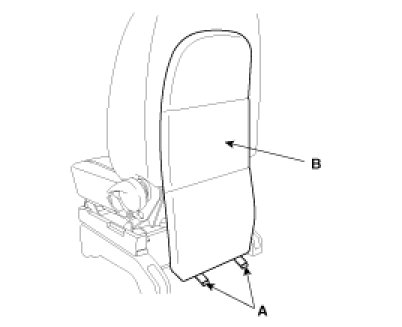

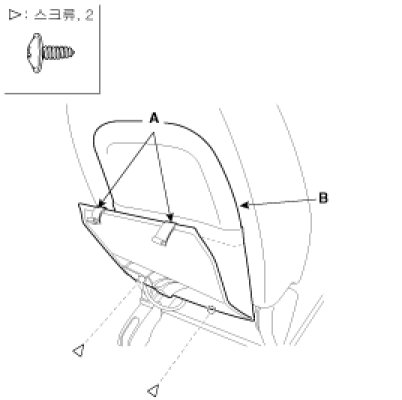

3. After disconnecting the scuff band (A), remove the seat back panel (B).

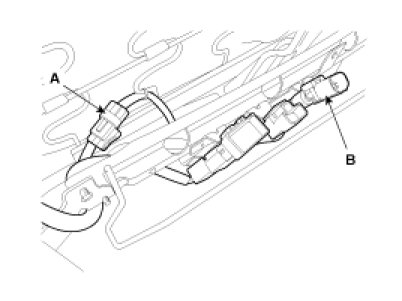

4. Disconnect the heater connector (A) and airbag connector (B).

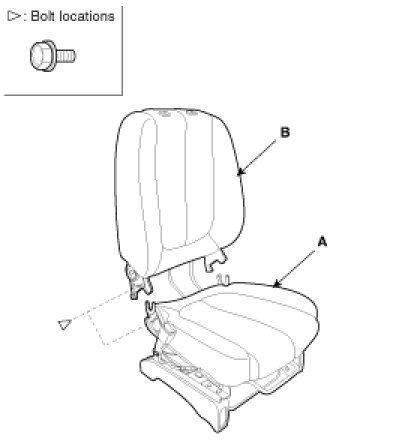

5. Disconnect the seat cushion assembly (A) and seat back assembly (B).

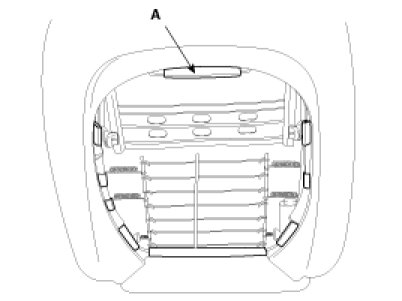

6. Disconnect the protector (A) from the back frame.

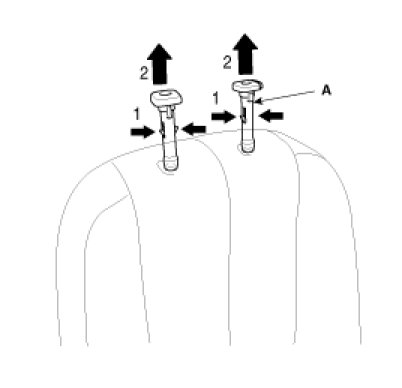

7. Pull out the headrest guides (A) while pinching the end of the guides, and remove them.

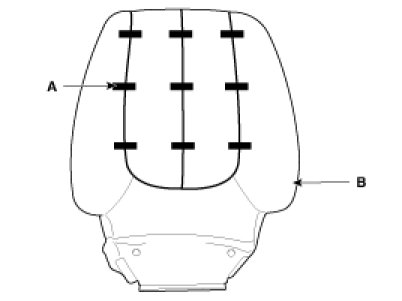

8. After removing the tape (A) on the front of seat back remove the seat back cover (B).




9. Installation is the reverse of removal.

SEAT BACK COVER REPLACEMENT
1. Remove front seat assembly.
2. Remove the recliner cover.
3. After disconnecting the scuff band (A), remove the seat back panel (B).




4. Disconnect the heater connector (A) and airbag connector (B).




5. Disconnect the protector (A) from the back frame.




6. Pull out the headrest guides (A) while pinching the end of the guides, and remove them.




7. After removing the tape (A) on the front of seat back remove the seat back cover (B).




8. Installation is the reverse of removal.
