Initial Inspection and Diagnostic Overview

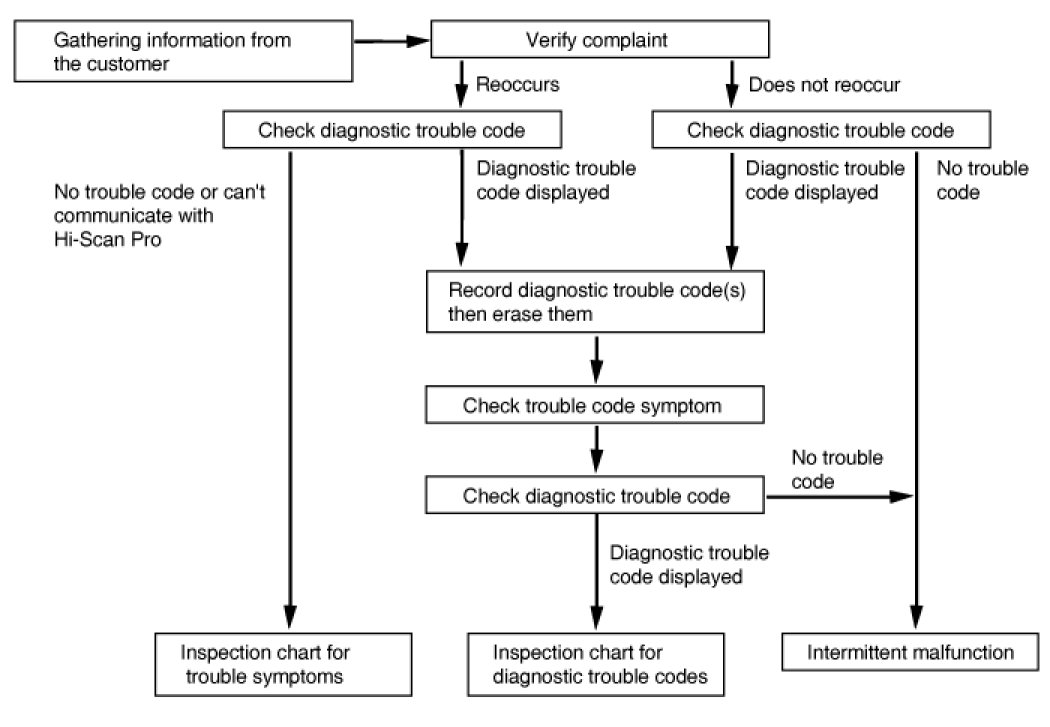

DIAGNOSTIC TROUBLESHOOTING FLOW





Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes(DTC)" mode.
2. Using a scan tool, clear the DTC.
3. Operate the vehicle within DTC Enable conditions in General information.
4. Are any DTC present ?
YES
> Go to the applicable troubleshooting procedure.
NO
> System is performing to specification at this time.
