Repair Procedures
REMOVAL AND INSTALLATION 1.
Disconnect negative battery terminal.
2.
Remove door
frame inner cover.
3.

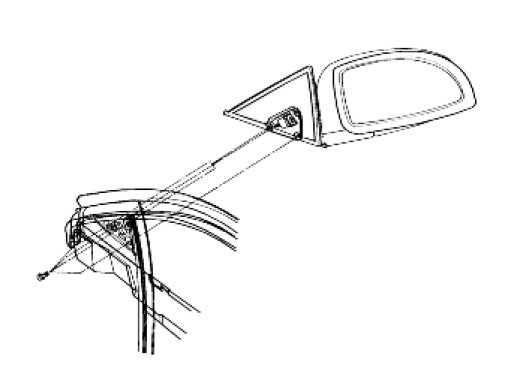

Remove outside rearview mirror.
(1)
Remove outside rearview mirror screws(3).
Tightening torque:
7-11Nm (0.7-1.1kg-m, 5.1-8.0lb-ft)
(2)
Remove outside rearview mirror clip(1).
(3)
Disconnect mirror connector.
4.
Install in reverse order of removal.
