Seat Temperature Element: Testing and Inspection
INSPECTIONPOWER LUMBAR SUPPORT 1.

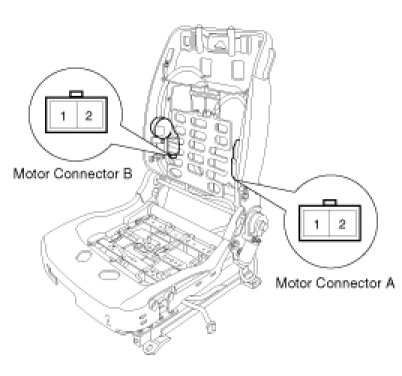

Disconnect the motor connector after removing the seat.
2.
When the battery connected directly to the motor terminals, check the motors run smoothly.
3.
Reverse the connections and check that the motor turns in reverse.
4.
If there is an abnormality, replace the motors.
