Repair Procedures
REMOVAL AND INSTALLATION
1. Remove rear seat cushion.

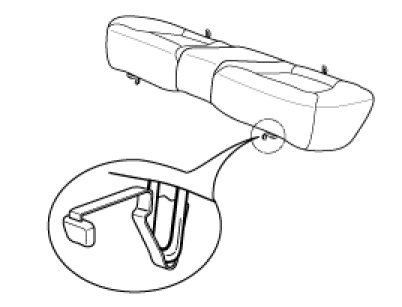

(1) Release seat cushion stopper.
(2) Remove seat cushion bolts(2).
Tightening torque:
17-26Nm (1.7-2.6kg-m, 12.3-18.8lb-ft)
(3) Disconnect seat cushion connector.
2. Remove rear seatback.

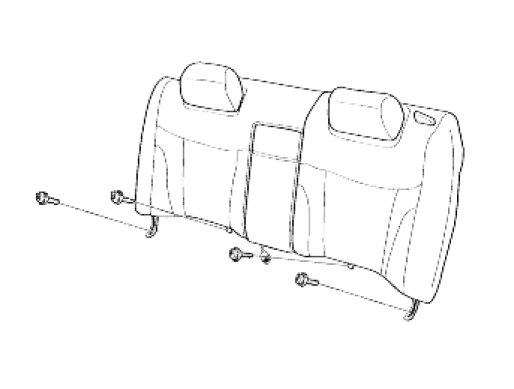

(1) Remove seat back bolts(4).
Tightening torque:
17-26Nm (1.7-2.6kg-m, 12.3-18.8lb-ft)
(2) Disconnect seatback & airbag connector.

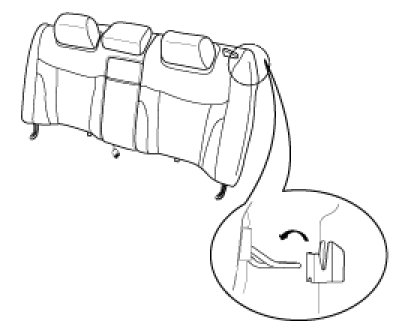

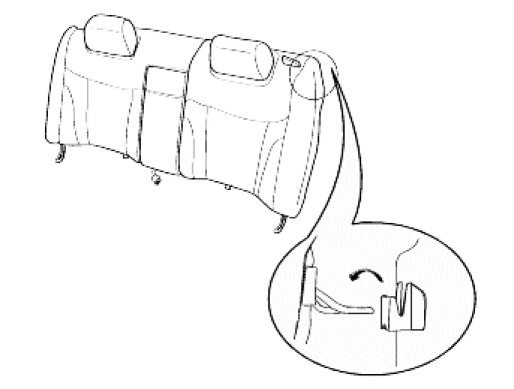

(3) Release seatback stopper, and then remove seatback.
3. Install in reverse order of removal.
