Repair Procedures

REMOVAL

1. Remove the center console.

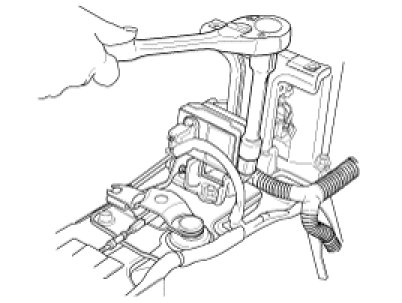

2. Remove the yaw-rate & lateral acceleration sensor mounting bolt.

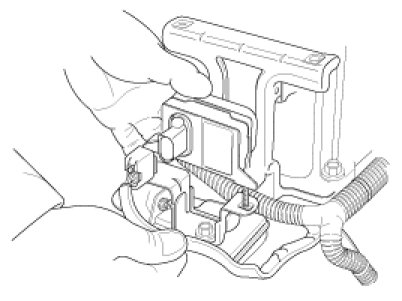

3. Disconnect the yaw-rate & lateral acceleration sensor connector.

INSTALLATION

1. Connect the yaw-rate & lateral acceleration sensor connector.
2. Install the yaw-rate & lateral acceleration sensor.

Tightening torque :
Yaw-rate & lateral acceleration sensor mounting bolt :
8 - 10 N.m(0.8 - 1.0 kgf.m, 5.6 - 6.9 lb-ft)

3. Install the center console.
